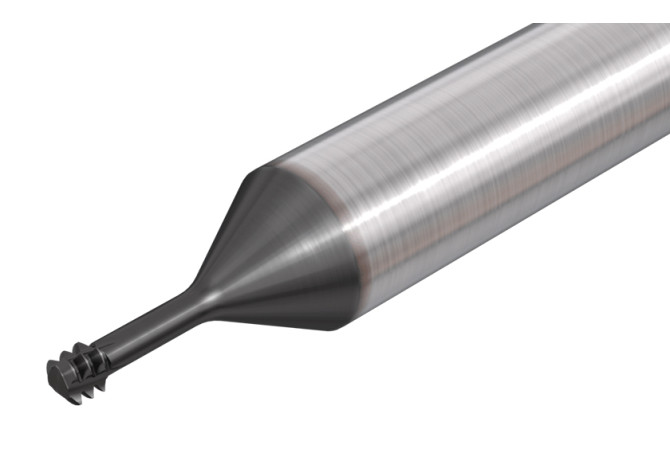

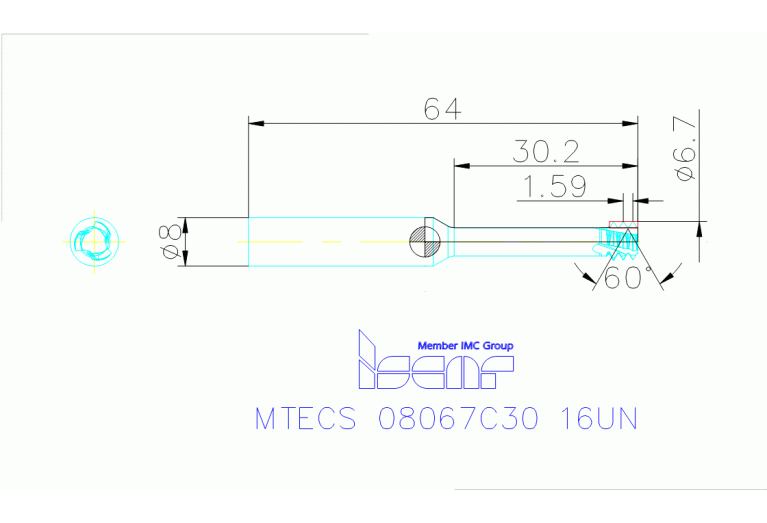

MTECS 08067C30 16UN IC908

Артикул: 5667140

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4.07 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00800105

FamilyProducts

Small Diameter Solid Carbide UN Profile Threading Endmills for Steel

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5667140

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-09 - Thread end mill

LF Functional length

64 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

28 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTECS 08067C30 16UN IC908

OAL Overall length

64 mm

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

TPI Threads per inch

16 1/in

Working process

No working processes available

WT Weight of item

0.03 kg

ZEFP Peripheral effective cutting edge count
