Главная Каталог продукции Toolunited 12 303-09 - Thread end mill MTECB 1212D23 16PG IC908

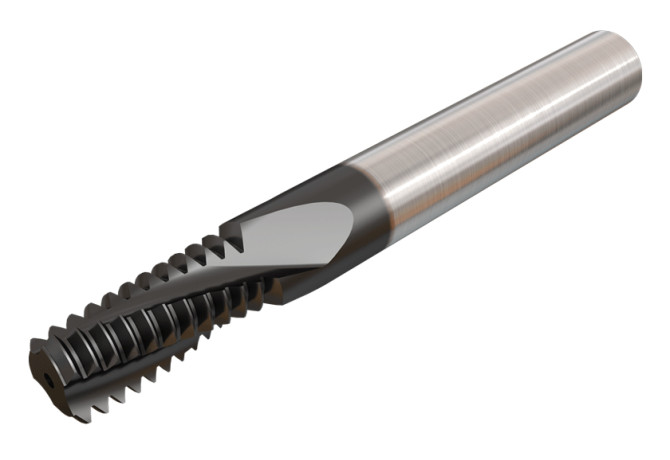

MTECB 1212D23 16PG IC908

Артикул: 5607677

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

23 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200105

FamilyProducts

Solid Carbide Threading Endmills with Coolant Hole for External and Internal PG Full Profile (DIN 40430)

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5607677

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTECB 1212D23 16PG IC908

OAL Overall length

84 mm

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

TPI Threads per inch

16 1/in

Working process

No working processes available

WT Weight of item

0.12 kg

ZEFP Peripheral effective cutting edge count
