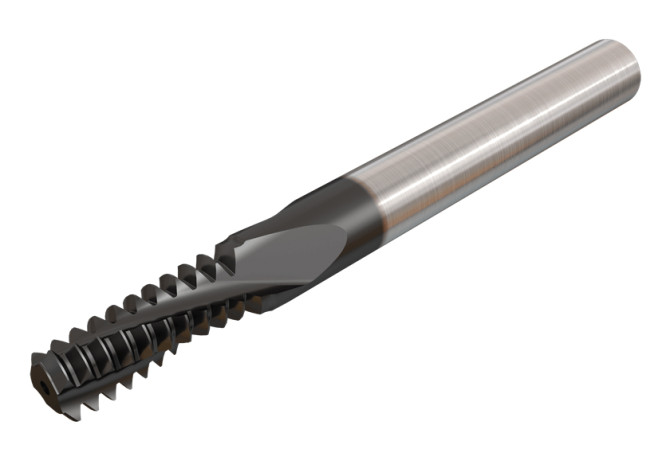

MTECB 0606C14 32UN IC908

Артикул: 5605873

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00600115

FamilyProducts

Solid Carbide Threading Endmills with Coolant Hole for Internal UN Thread Profile

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5605873

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-09 - Thread end mill

LF Functional length

58 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTECB 0606C14 32UN IC908

OAL Overall length

58 mm

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

TPI Threads per inch

32 1/in

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFP Peripheral effective cutting edge count
