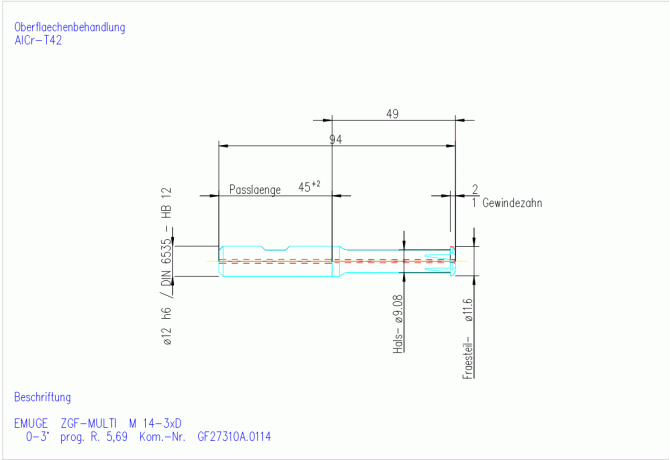

Главная Каталог продукции Toolunited 12 303-09 - Thread end mill GF27310A.0114

GF27310A.0114

Артикул: GF27310A.0114

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

AlCr-T42

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

Delivery state valid from

10/1/2022

DIN

ZYL01201015

FamilyProducts

Zirkulargewindefräser / ZGF-MULTI

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

VHM-AlCr-T

GRDPRIO Standard designation of the grade main application

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

71.5 mm

LH Head length

44 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201015

LPR Protruding length

49 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF27310A.0114

OAL Overall length

94 mm

TD Thread diameter

14 mm

THFT Thread form type

TP Thread pitch

2 mm

Working process

FSC - Thread milling

WT Weight of item

0.115 kg

ZEFP Peripheral effective cutting edge count
