Главная Каталог продукции Toolunited 12 303-09 - Thread end mill 4134 5.486

4134 5.486

Артикул: 9041340054860

В наличии

В корзину

Описание

Характеристики

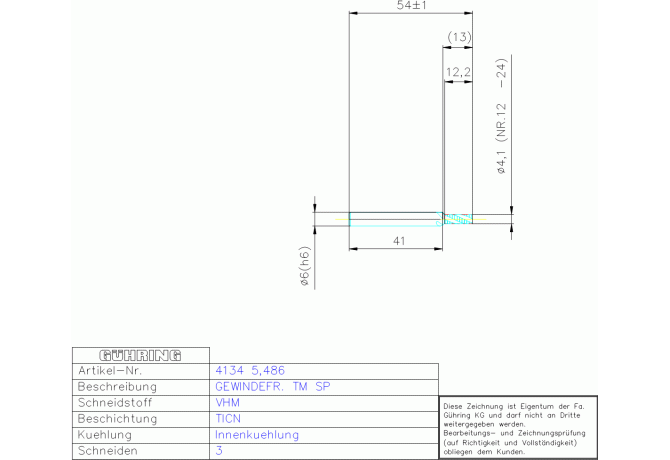

APMX Depth of cut maximum

12.2 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4.1 mm

Delivery state valid from

12/1/2021

DIN

ZYL00600115

FamilyProducts

VHM TICN KI GFR TM 2XD NR,12 -24 UNC

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

25.28 mm

GAMF Rake angle radial

27 Degree

GAMP Rake angle axial

4 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9041340054860

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-09 - Thread end mill

LF Functional length

54 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

13 mm

LS Shank length

40.8 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

4134 5.486

OAL Overall length

54 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

UNC

TP Thread pitch

1.058 mm

TPI Threads per inch

24 1/in

Working process

FSC - Thread milling

WT Weight of item

0.012 kg

ZEFP Peripheral effective cutting edge count
