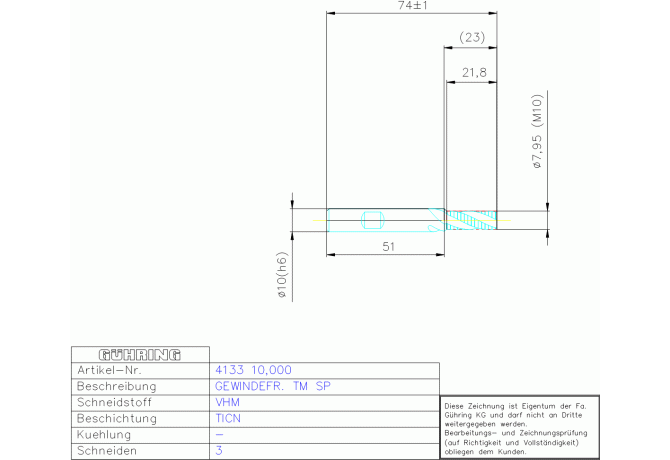

Главная Каталог продукции Toolunited 12 303-09 - Thread end mill 4133 10.000

4133 10.000

Артикул: 9041330100000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

21.8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

7.95 mm

Delivery state valid from

12/1/2021

DIN

ZYL01001005

FamilyProducts

VHM TICN GEW,FRA. TM-SP 2XD M10 O.KI HB

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

49.018 mm

GAMF Rake angle radial

27 Degree

GAMP Rake angle axial

4 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9041330100000

Interface codes

J6 / J61

ISO

ZYL10G1000h$06

ISYC Subclass

303-09 - Thread end mill

LF Functional length

74 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001005

LPR Protruding length

23 mm

LS Shank length

51.1 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

4133 10.000

OAL Overall length

74 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

10 mm

THFT Thread form type

TP Thread pitch

1.5 mm

Working process

FSC - Thread milling

WT Weight of item

0.07 kg

ZEFP Peripheral effective cutting edge count
