Главная Каталог продукции Toolunited 12 303-09 - Thread end mill 3526 8.000

3526 8.000

Артикул: 9035260080000

В наличии

В корзину

Описание

Характеристики

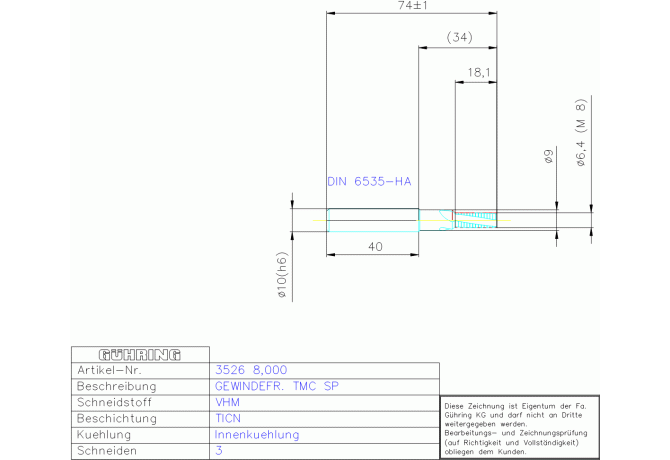

APMX Depth of cut maximum

18.1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TICN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.4 mm

Delivery state valid from

12/1/2021

DIN

ZYL01000115

DN Neck diameter

9 mm

FamilyProducts

VHM TICN TMC-GFR 2,0XD M 8 HA

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

114.028 mm

GAMF Rake angle radial

10 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9035260080000

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

74 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LPR Protruding length

34 mm

LS Shank length

40 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

3526 8.000

OAL Overall length

74 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

8 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

FSC - Thread milling

WT Weight of item

0.038 kg

ZEFP Peripheral effective cutting edge count
