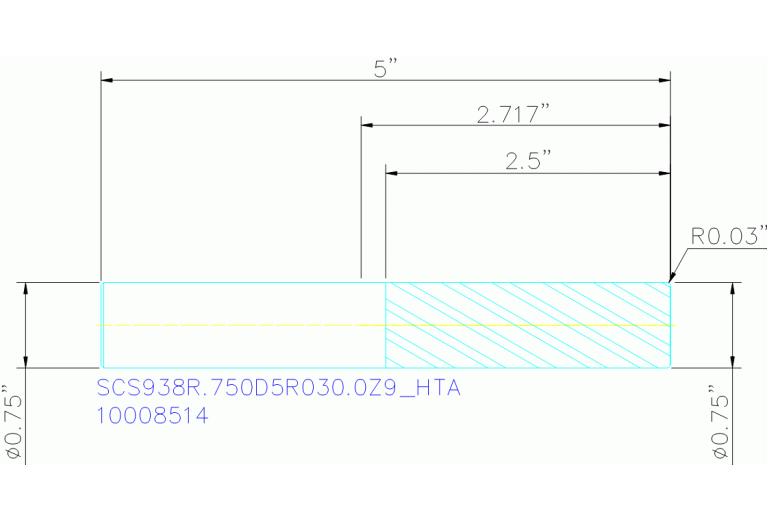

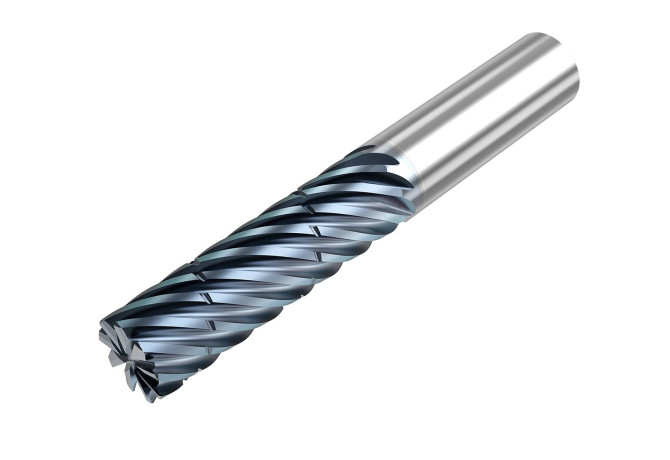

SCS938R.750D5R030.0Z9 HTA
SCS938R.750D5R030.0Z9 HTA
Артикул:
10008514
В наличии
Характеристики

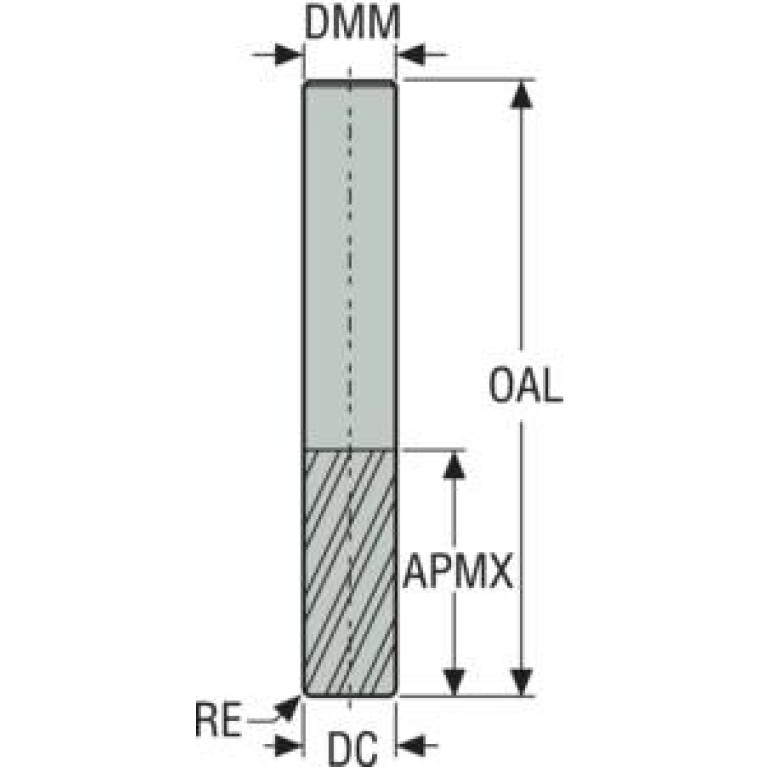

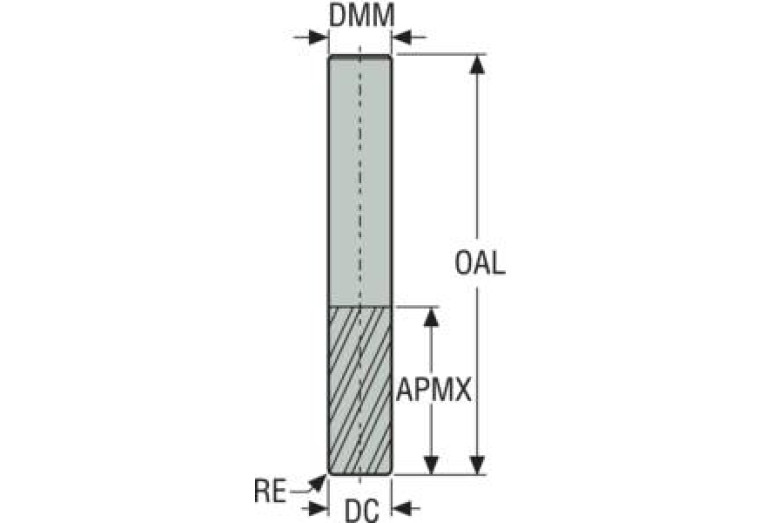

APMX Depth of cut maximum
63.5 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
HTA
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL07500125
F71 Number of corner designs
1
FamilyProducts
SCS938R.750D5R030.0Z9 HTA
FHA Flute helix angle
38 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
7 Degree
GRDMFG Grade manufacturers designation
HTA
HAND Cutting direction
R - Right
ID Technical product number
10008514
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07500125
LS Shank length
58 mm
Name Identifying order number
SCS938R.750D5R030.0Z9 HTA
NameAnsi Identifying order number inch alternative
SCS938R-0.750-D5-R030.0-Z
OAL Overall length
127 mm
RMPX Ramping angle maximum
2 Degree
Working process
No working processes available
WT Weight of item
0.468 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
