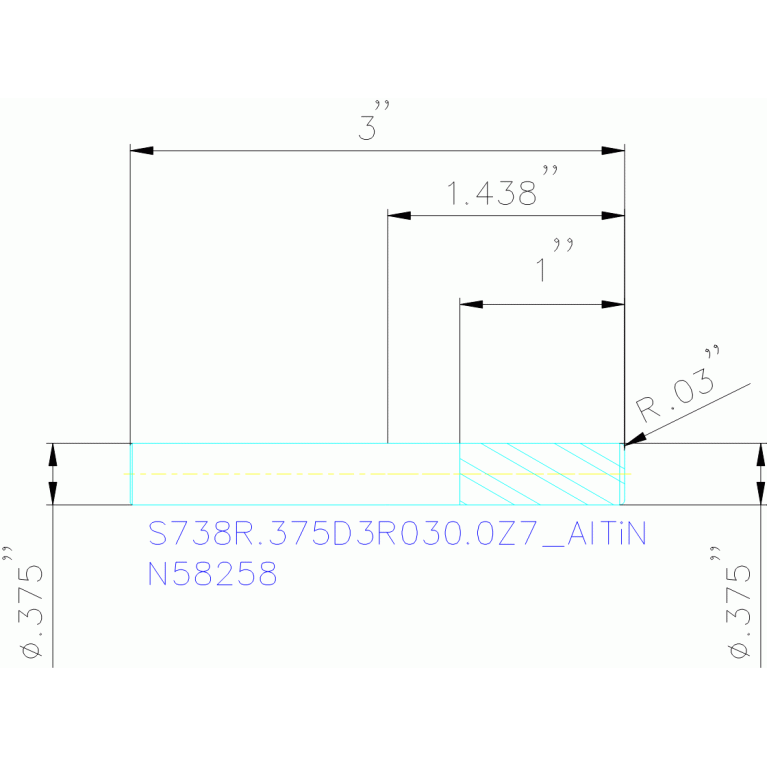

Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill S738R.375D3R030.0Z7 ALTIN

S738R.375D3R030.0Z7 ALTIN

S738R.375D3R030.0Z7 ALTIN S738R.375D3R030.0Z7 ALTIN S738R.375D3R030.0Z7 ALTIN S738R.375D3R030.0Z7 ALTIN

S738R.375D3R030.0Z7 ALTIN

SECO Tools
Артикул: 17002326
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
25.4 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
AlTiN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
9.525 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03750125
F71 Number of corner designs
1
FamilyProducts
S738R.375D3R030.0Z7 ALTIN
FHA Flute helix angle
38 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
7 Degree
GRDMFG Grade manufacturers designation
ALTIN
HAND Cutting direction
R - Right
ID Technical product number
17002326
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0375
LOC-03 DCONMS Diameter
9.525 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03750125
LS Shank length
39.69 mm
Name Identifying order number
S738R.375D3R030.0Z7 ALTIN
NameAnsi Identifying order number inch alternative
S738R-0.375-D3-R030.0-Z7
OAL Overall length
76.2 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.073 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
