Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill MM EC080H12R05CF-4T05 IC908

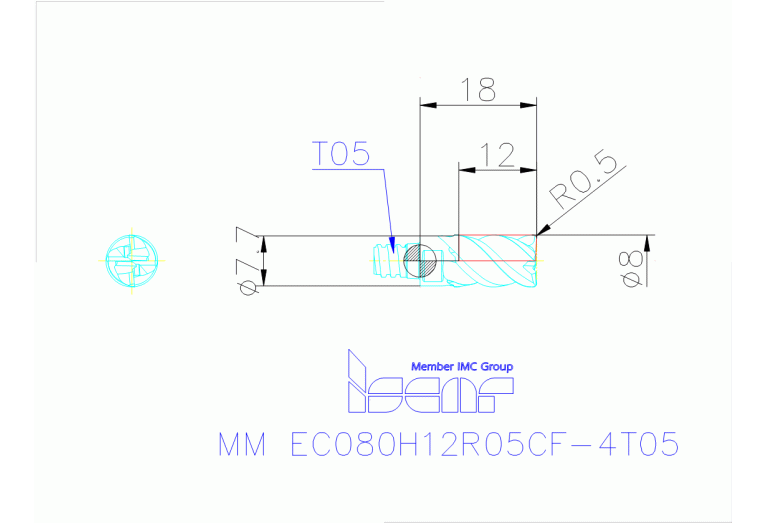

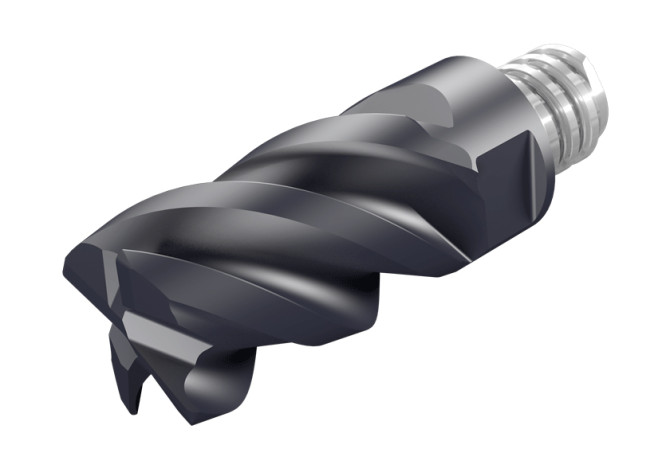

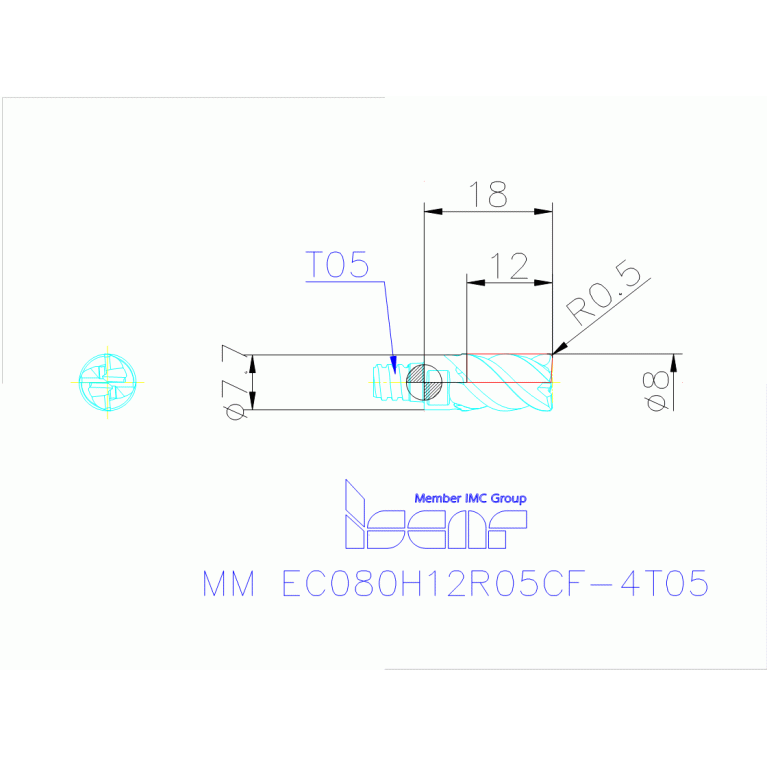

MM EC080H12R05CF-4T05 IC908

Артикул: 3336711

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F71 Number of corner designs

FamilyProducts

Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for CHATTERFREE Roughing and Finishing

FHA Flute helix angle

46.5 Degree

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3336711

Interface codes

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

18 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LS Shank length

7.1 mm

Name Identifying order number

MM EC080H12R05CF-4T05 IC908

RE Corner radius

0.5 mm

RMPX Ramping angle maximum

5 Degree

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
