Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill IMX25C6HV250R10025C

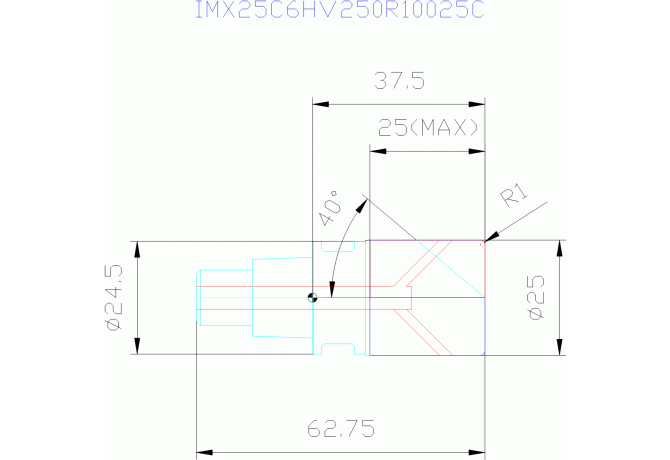

IMX25C6HV250R10025C

IMX25C6HV250R10025C IMX25C6HV250R10025C

IMX25C6HV250R10025C

Mitsubishi Materials
Артикул: 22861603
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
25 mm
BMC Body material code
H - Solid carbide
COMPC Company code
MI - Mitsubishi Materials
DC Cutting diameter
25 mm
Delivery state valid from
4/1/2023
DIN
SAD02500105
F71 Number of corner designs
1
FamilyProducts
Corner radius head, Multi-flute, Irregular helix
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
EP7020
HAND Cutting direction
R - Right
ID Technical product number
22861603
Interface codes
J6 / J61
ISO
SAD01G2500$$$$
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
37.5 mm
LH Head length
37.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
24.5 mm
LOC-03 ISO
SAD01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD02500105
LPR Protruding length
37.5 mm
Name Identifying order number
IMX25C6HV250R10025C
OAL Overall length
62.8 mm
RE Corner radius
1 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
