Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill IMX12C6HV120R05012C

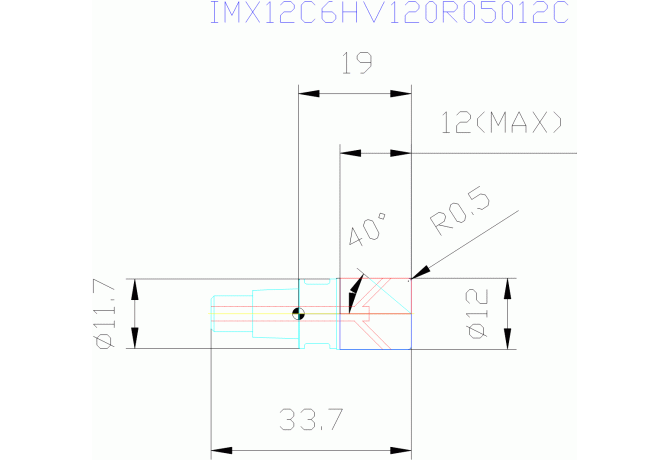

IMX12C6HV120R05012C

IMX12C6HV120R05012C IMX12C6HV120R05012C

IMX12C6HV120R05012C

Mitsubishi Materials
Артикул: 22861542
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
12 mm
BMC Body material code
H - Solid carbide
COMPC Company code
MI - Mitsubishi Materials
DC Cutting diameter
12 mm
Delivery state valid from
4/1/2023
DIN
SAD01200105
F71 Number of corner designs
1
FamilyProducts
Corner radius head, Multi-flute, Irregular helix
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
EP7020
HAND Cutting direction
R - Right
ID Technical product number
22861542
Interface codes
J6 / J61
ISO
SAD01G1200$$$$
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
19 mm
LH Head length
19 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
11.7 mm
LOC-03 ISO
SAD01G1200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01200105
LPR Protruding length
19 mm
Name Identifying order number
IMX12C6HV120R05012C
OAL Overall length
33.7 mm
RE Corner radius
0.5 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
