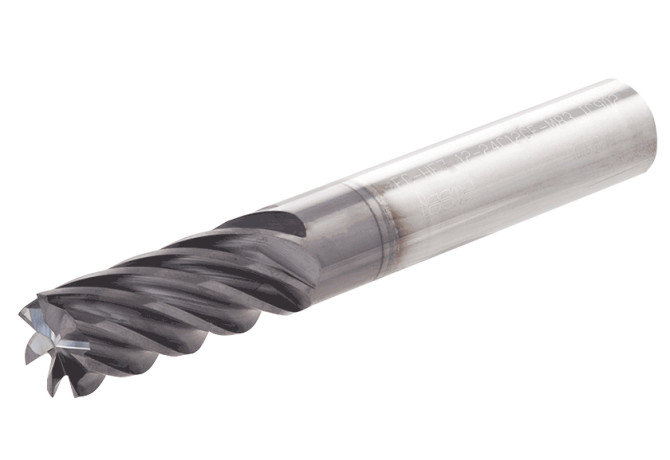

EC-H7 16-48C16CFR2.5-M110 IC902

Артикул: 3344054

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

48 mm

BMC Body material code

H - Solid carbide

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F71 Number of corner designs

FamilyProducts

7 Flute Endmills with Different Helix and Variable Pitch for CHATTERFREE High Speed Finish Milling

FHA Flute helix angle

37 Degree

GRDMFG Grade manufacturers designation

IC902

ID Technical product number

3344054

Interface codes

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

110 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

EC-H7 16-48C16CFR2.5-M110 IC902

OAL Overall length

110 mm

RE Corner radius

2.5 mm

RMPX Ramping angle maximum

3 Degree

Working process

No working processes available

WT Weight of item

0.27 kg

ZEFP Peripheral effective cutting edge count
