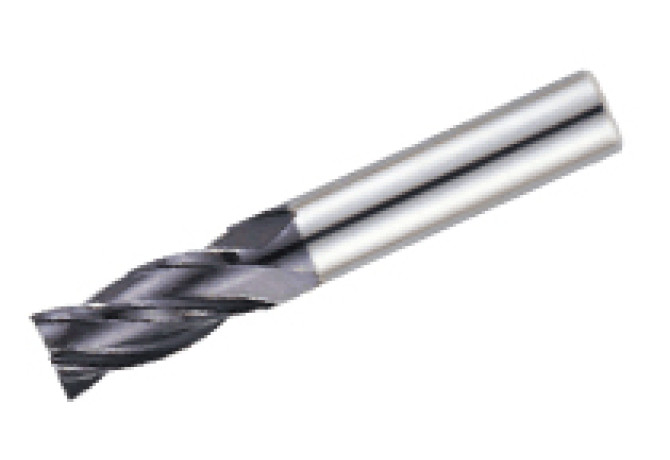

Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill EC-H5M 20-32/82C20CFR.2C IC900

EC-H5M 20-32/82C20CFR.2C IC900

Артикул: 3382205

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

AlTiN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02000115

F71 Number of corner designs

FamilyProducts

5 Flute Endmills with Different Helix and Variable Pitch for Chatter Dampening with Assorted Radii

FHA Flute helix angle

37 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC900

HAND Cutting direction

R - Right

ID Technical product number

3382205

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

Name Identifying order number

EC-H5M 20-32/82C20CFR.2C IC900

OAL Overall length

132 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

2 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
