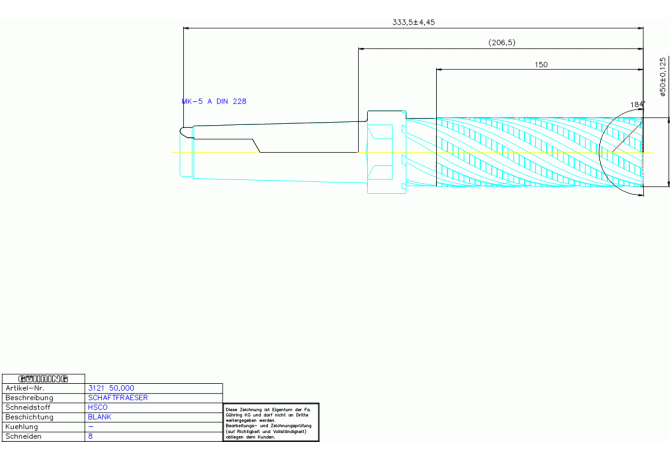

3121 50.000
3121 50.000
Артикул:
9031210500000
В наличии
Характеристики
APMX Depth of cut maximum
150 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
NR
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
MKG00501085
DN Neck diameter
49 mm
F71 Number of corner designs
1
FamilyProducts
HSCO SCHAFTFRAESER 50,000 DIN 845RN LANG
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
280 mm
GAMF Rake angle radial
30 Degree
GRD2ND Standard designation of the grade 2nd application
HSCO
GRDMFG Grade manufacturers designation
HSCO
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9031210500000
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
206.5 mm
LN Neck length
336 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0050
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00501085
LPR Protruding length
206.5 mm
LS Shank length
136 mm
Name Identifying order number
3121 50.000
OAL Overall length
336 mm
STDLET Standard letter to the standard number
C
STDNO Standard
DIN 845L
THSZMS Connection thread nominal size machine side
M20
Working process
FEC - Square shoulder milling
WT Weight of item
3.793 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
