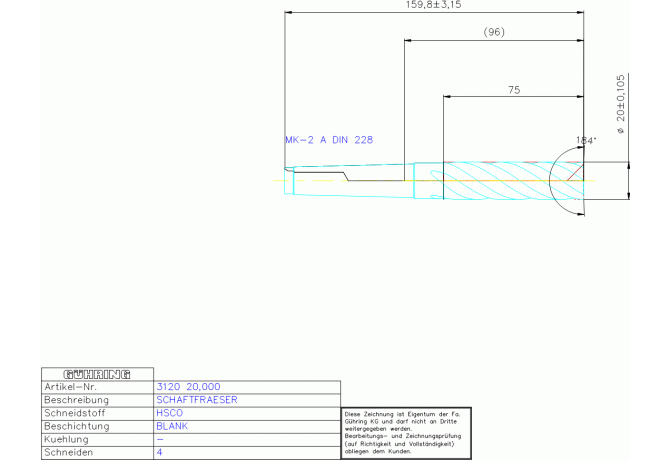

Главная Каталог продукции Toolunited 12 303-01 - Non-centre cutting end mill 3120 20.000

3120 20.000

Артикул: 9031200200000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

75 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00201085

DN Neck diameter

19 mm

F71 Number of corner designs

FamilyProducts

HSCO SCHAFTFRAESER 20,000 DIN 845RN LANG

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

90 mm

GAMF Rake angle radial

35 Degree

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9031200200000

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

96 mm

LN Neck length

160 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00201085

LPR Protruding length

96 mm

LS Shank length

69 mm

Name Identifying order number

3120 20.000

OAL Overall length

160 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN 845L

THSZMS Connection thread nominal size machine side

M10

Working process

FEC - Square shoulder milling

WT Weight of item

0.242 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
