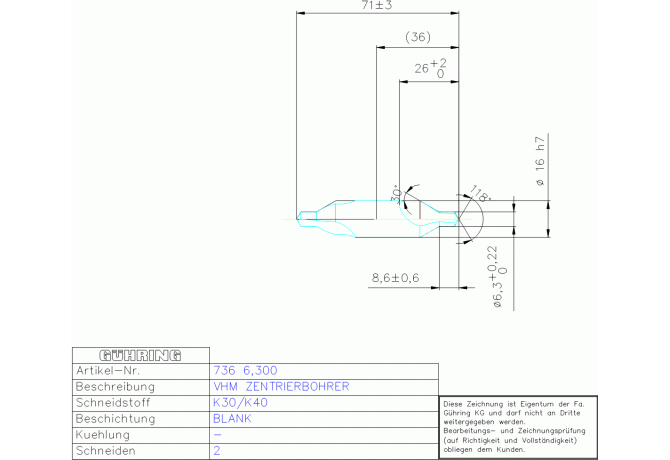

Главная Каталог продукции Toolunited 12 302-07 - Centre drill 736 6.300

736 6.300

Артикул: 9007360063000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CTRSYC Centre drill style code

A - Form A

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6.3 mm

DCONMSLD Shank diameter lower limit

-0.018 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01600105

DRSYC Drill tool style code

6 - center drill

FamilyProducts

VHM ZENTRIERBOHRER WN 6,30 RN FORM A

FHA Flute helix angle

13 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

212 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9007360063000

Interface codes

J6 /

ISYC Subclass

302-07 - Centre drill

LCF Length chip flute

26 mm

LF Functional length

69.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

36 mm

LU Usable length

17.1 mm

Name Identifying order number

736 6.300

NOF Flute count

OAL Overall length

71 mm

PL Point length

1.9 mm

SDL Step diameter length

4.8 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.111 kg
