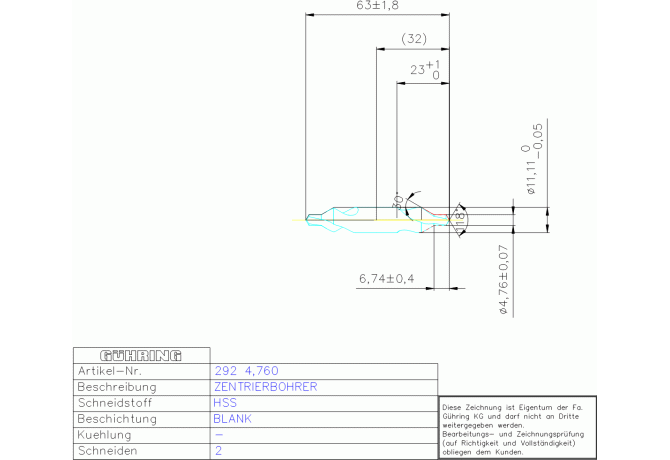

Главная Каталог продукции Toolunited 12 302-07 - Centre drill 292 4.760

292 4.760

Артикул: 9002920047600

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CTRSYC Centre drill style code

A - Form A

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.76 mm

DCONMSLD Shank diameter lower limit

-0.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL04370125

DRSYC Drill tool style code

6 - center drill

FamilyProducts

HSS ZENTRIERB, INCH 4,760 BS 328RN FORM

FHA Flute helix angle

29 Degree

FHP Flute helix pitch

63 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002920047600

Interface codes

J6 / J61

ISO

ZYL01R4374$$$$

ISYC Subclass

302-07 - Centre drill

LCF Length chip flute

23 mm

LF Functional length

61.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0437

LOC-03 DCONMS Diameter

11.11 mm

LOC-03 ISO

ZYL01R4374$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04370125

LPR Protruding length

32 mm

LU Usable length

12.3 mm

Name Identifying order number

292 4.760

NOF Flute count

OAL Overall length

63 mm

PL Point length

1.5 mm

SDL Step diameter length

3.74 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

BS 328

Working process

BZB - Center-drilling

WT Weight of item

0.029 kg
