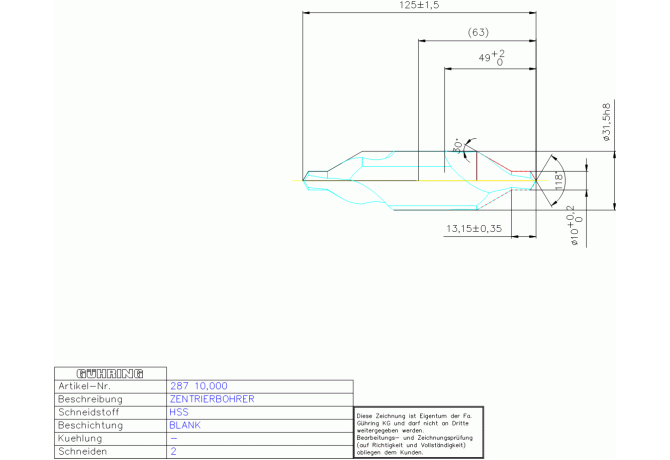

Главная Каталог продукции Toolunited 12 302-07 - Centre drill 287 10.000

287 10.000

Артикул: 9002870100000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CTRSYC Centre drill style code

A - Form A

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10 mm

DCONMSLD Shank diameter lower limit

-0.039 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL03150105

DRSYC Drill tool style code

6 - center drill

FamilyProducts

HSS ZENTRIERBOH, ALT 10,000 DIN 333RN FO

FHA Flute helix angle

29 Degree

FHP Flute helix pitch

180 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002870100000

Interface codes

J6 /

ISYC Subclass

302-07 - Centre drill

LCF Length chip flute

49 mm

LF Functional length

121.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0315

LOC-03 DCONMS Diameter

31.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03150105

LPR Protruding length

63 mm

LU Usable length

31.8 mm

Name Identifying order number

287 10.000

NOF Flute count

OAL Overall length

125 mm

PL Point length

3.1 mm

SDL Step diameter length

6.95 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN333

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.361 kg
