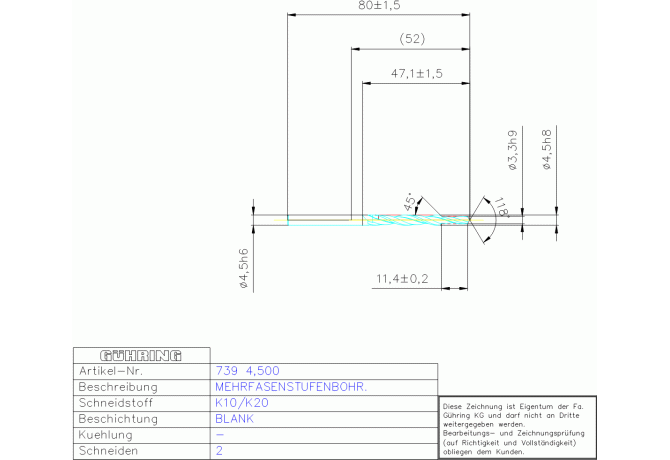

Главная Каталог продукции Toolunited 12 302-02 - Step drill 739 4.500

739 4.500

Артикул: 9007390045000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.3 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00450105

DRSYC Drill tool style code

2 - subland step drill

FamilyProducts

VHM MEHRFASENBOH,4,5 x3,3 WN RN K10/20ZL

FHA Flute helix angle

26 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

28 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9007390045000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

47 mm

LF Functional length

79 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0045

LOC-03 DCONMS Diameter

4.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00450105

LPR Protruding length

52 mm

LS Shank length

33 mm

LU Usable length

40 mm

Name Identifying order number

739 4.500

NOF Flute count

NOS Step count

OAL Overall length

80 mm

PL Point length

1 mm

SDL Step diameter length

11.4 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles

WT Weight of item

0.011 kg
