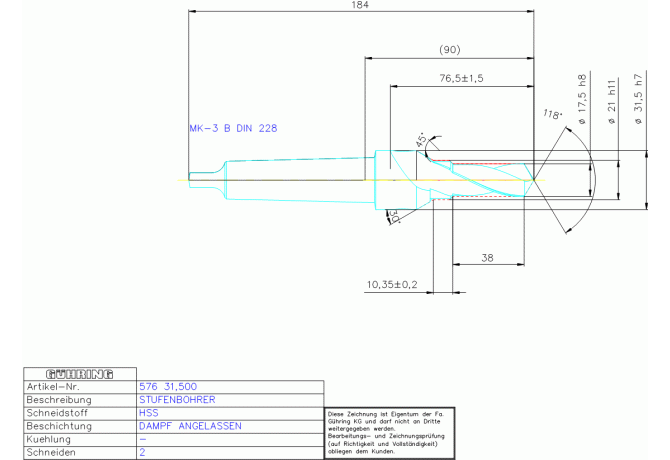

Главная Каталог продукции Toolunited 12 302-02 - Step drill 576 31.500

576 31.500

Артикул: 9005760315000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

17.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00302085

FamilyProducts

HSS STUFENBOHRER M 20 WN 8RN MKOHNE FLAE

FHA Flute helix angle

42 Degree

FHP Flute helix pitch

112 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005760315000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

76.5 mm

LF Functional length

84.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

90 mm

LS Shank length

99 mm

LU Usable length

61.2 mm

Name Identifying order number

576 31.500

NOF Flute count

NOS Step count

OAL Overall length

184 mm

PL Point length

5.3 mm

SDL Step diameter length

38 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

WN 8

Working process

BPB - Drilling of profiles

WT Weight of item

0.694 kg
