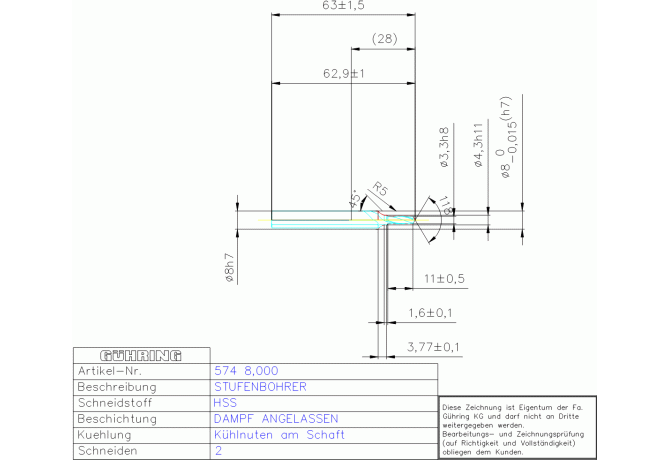

Главная Каталог продукции Toolunited 12 302-02 - Step drill 574 8.000

574 8.000

Артикул: 9005740080000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DC Cutting diameter minimum

3.3 mm

DCONMSLD Shank diameter lower limit

-0.015 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00805015

FamilyProducts

HSS STUFENBOHRER 8,000 WN 8RN ZYLMIT FLA

FHA Flute helix angle

43 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

26.5 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005740080000

Interface codes

J6 / J61

ISO

ZYL50F8000$$$$

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

23 mm

LF Functional length

62 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL50F8000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00805015

LPR Protruding length

28 mm

LS Shank length

40 mm

LU Usable length

18.4 mm

Name Identifying order number

574 8.000

NOF Flute count

NOS Step count

OAL Overall length

63 mm

PL Point length

1 mm

SDL Step diameter length

11 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

WN 8

Working process

BPB - Drilling of profiles

WT Weight of item

0.017 kg
