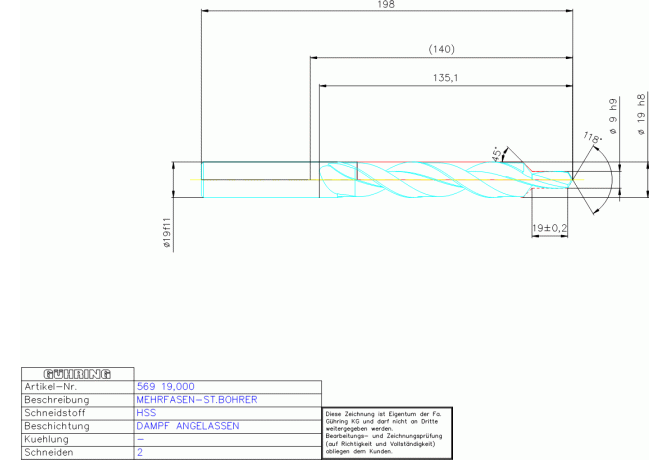

Главная Каталог продукции Toolunited 12 302-02 - Step drill 569 19.000

569 19.000

Артикул: 9005690190000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9 mm

DCONMSLD Shank diameter lower limit

-0.15 mm

DCONMSUD Shank diameter upper limit

-0.02 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01900105

DRSYC Drill tool style code

2 - subland step drill

FamilyProducts

HSS MEHRFASENBOHR, 19,0X9,0 DIN8374-B RN

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

85.2 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005690190000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

135 mm

LF Functional length

195.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0190

LOC-03 DCONMS Diameter

19 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01900105

LPR Protruding length

140 mm

LS Shank length

63 mm

LU Usable length

115 mm

Name Identifying order number

569 19.000

NOF Flute count

NOS Step count

OAL Overall length

198 mm

PL Point length

2.8 mm

SDL Step diameter length

19 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN8374

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BPB - Drilling of profiles

WT Weight of item

0.254 kg
