Главная Каталог продукции Toolunited 12 302-02 - Step drill 569 14.500

569 14.500

Артикул: 9005690145000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6.6 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01450105

DRSYC Drill tool style code

2 - subland step drill

FamilyProducts

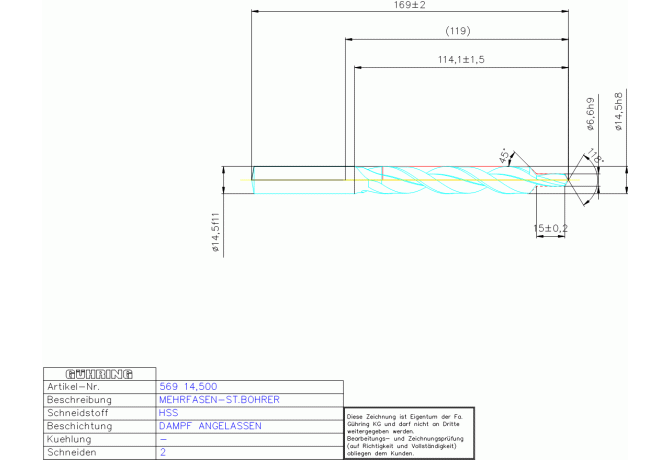

HSS MEHRFASENBOHR, 14,5X6,6 DIN8374-B RN

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

65.1 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005690145000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

114 mm

LF Functional length

167 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0145

LOC-03 DCONMS Diameter

14.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01450105

LPR Protruding length

119 mm

LS Shank length

55 mm

LU Usable length

99 mm

Name Identifying order number

569 14.500

NOF Flute count

NOS Step count

OAL Overall length

169 mm

PL Point length

2 mm

SDL Step diameter length

15 mm

SIG Point angle 1st step

118 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN8374

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BPB - Drilling of profiles

WT Weight of item

0.126 kg
