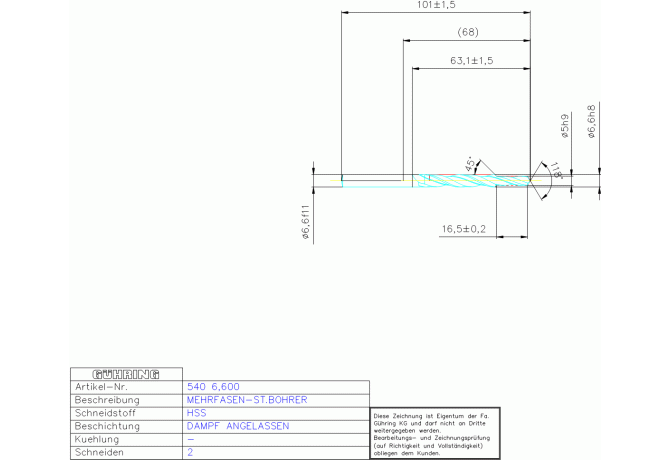

Главная Каталог продукции Toolunited 12 302-02 - Step drill 540 6.600

540 6.600

Артикул: 9005400066000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCONMSLD Shank diameter lower limit

-0.103 mm

DCONMSUD Shank diameter upper limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00660105

DRSYC Drill tool style code

2 - subland step drill

FamilyProducts

HSS MEHRFASENBOH, 6,6 x 5,0 DIN8378-A RN

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

37.5 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005400066000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

63 mm

LF Functional length

99.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0066

LOC-03 DCONMS Diameter

6.6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00660105

LPR Protruding length

68 mm

LS Shank length

38 mm

LU Usable length

54 mm

Name Identifying order number

540 6.600

NOF Flute count

NOS Step count

OAL Overall length

101 mm

PL Point length

1.6 mm

SDL Step diameter length

16.5 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN8378

Working process

BPB - Drilling of profiles

WT Weight of item

0.016 kg
