Главная Каталог продукции Toolunited 12 302-02 - Step drill 532 16.000

532 16.000

Артикул: 9005320160000

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202085

DRSYC Drill tool style code

3 - pin hole drill

FamilyProducts

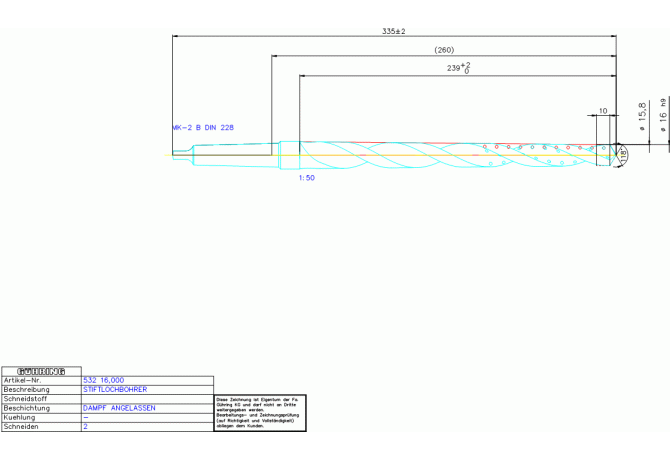

HSS STIFTLOCHBOHRER 16,000 DIN 1898RN MK

FHA Flute helix angle

31 Degree

FHP Flute helix pitch

106 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005320160000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

239 mm

LF Functional length

245.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

260 mm

LS Shank length

80 mm

LU Usable length

230 mm

Name Identifying order number

532 16.000

NOF Flute count

NOS Step count

OAL Overall length

335 mm

PL Point length

4.8 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN1898

Working process

BVB - Drilling

WT Weight of item

0.406 kg
