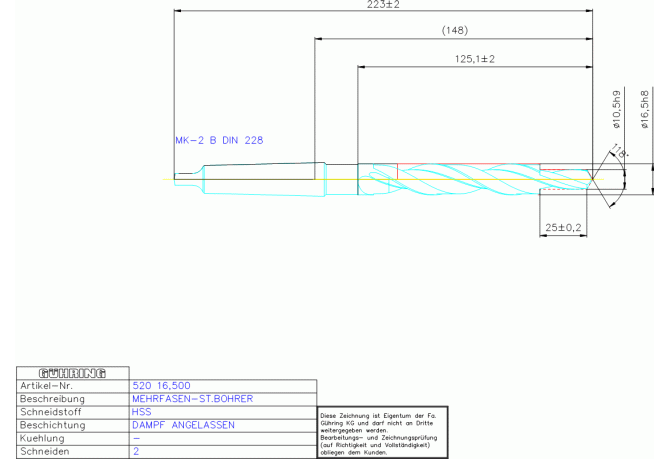

Главная Каталог продукции Toolunited 12 302-02 - Step drill 520 16.500

520 16.500

Артикул: 9005200165000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202085

DRSYC Drill tool style code

2 - subland step drill

FamilyProducts

HSS MEHRFASENBOH, 16,5 x 10,5 WN 22RN MK

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

85 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9005200165000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

125 mm

LF Functional length

144.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

148 mm

LS Shank length

80 mm

LU Usable length

104 mm

Name Identifying order number

520 16.500

NOF Flute count

NOS Step count

OAL Overall length

223 mm

PL Point length

3.2 mm

SDL Step diameter length

25 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

WN 22

Working process

BPB - Drilling of profiles

WT Weight of item

0.52 kg
