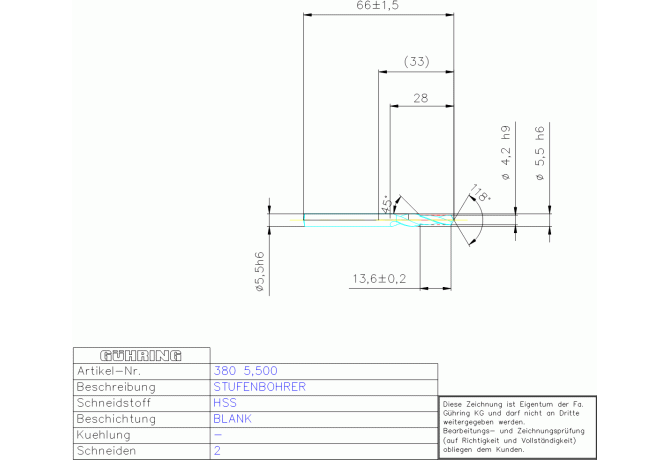

380 5.500
380 5.500
Артикул:
9003800055000
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
4.2 mm
DCONMSLD Shank diameter lower limit
-0.008 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00550105
FamilyProducts
HSS KURZSTUFENBOHRER 5,500 WN 16RN KERN,
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
33.5 mm
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
GRDSYC Grind style code
A
HAND Cutting direction
R - Right
ID Technical product number
9003800055000
Interface codes
J6 /
ISYC Subclass
302-02 - Step drill
LCF Length chip flute
28 mm
LF Functional length
64.7 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0055
LOC-03 DCONMS Diameter
5.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00550105
LPR Protruding length
33 mm
LS Shank length
38 mm
LU Usable length
20 mm
Name Identifying order number
380 5.500
NOF Flute count
2
NOS Step count
2
OAL Overall length
66 mm
PL Point length
1.3 mm
SDL Step diameter length
13.6 mm
SIG Point angle 1st step
118 Degree
STDNO Standard
WN 16
Working process
BPB - Drilling of profiles
WT Weight of item
0.01 kg
