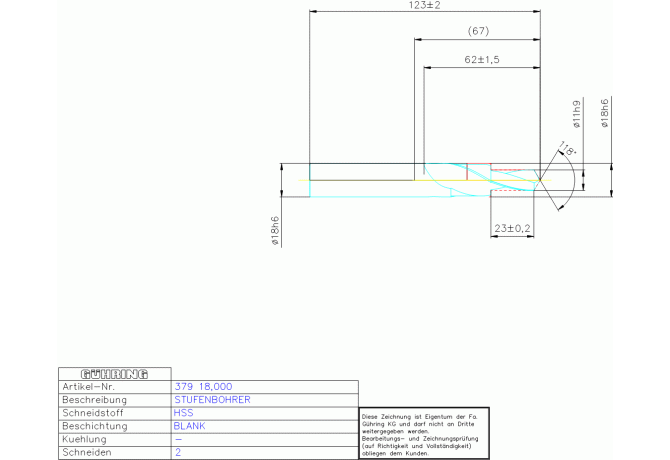

Главная Каталог продукции Toolunited 12 302-02 - Step drill 379 18.000

379 18.000

Артикул: 9003790180000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

11 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01800105

FamilyProducts

HSS KURZSTUFENBOHRER 18,000 WN 16RN MIT,

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

95 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003790180000

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

62 mm

LF Functional length

119.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800105

LPR Protruding length

67 mm

LS Shank length

61 mm

LU Usable length

39 mm

Name Identifying order number

379 18.000

NOF Flute count

NOS Step count

OAL Overall length

123 mm

PL Point length

3.4 mm

SDL Step diameter length

23 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

WN 16

Working process

BPB - Drilling of profiles

WT Weight of item

0.188 kg
