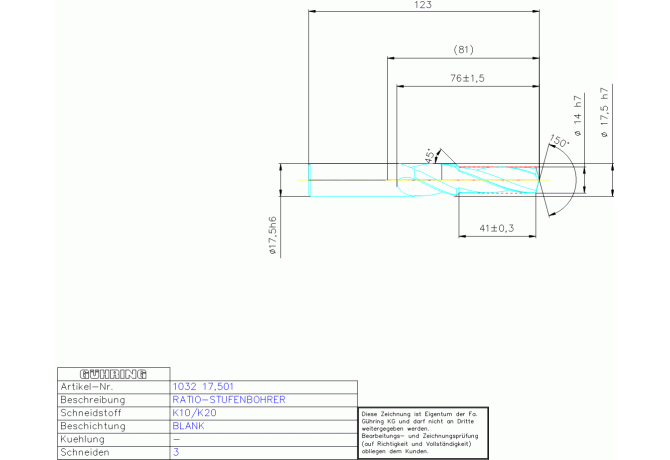

Главная Каталог продукции Toolunited 12 302-02 - Step drill 1032 17.501

1032 17.501

Артикул: 9010320175010

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01750105

FamilyProducts

VHM STUFENDREISCHN, D X 14,0 WN 33RN K10

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

106 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

ID Technical product number

9010320175010

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

76 mm

LF Functional length

121.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0175

LOC-03 DCONMS Diameter

17.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01750105

LPR Protruding length

81 mm

LS Shank length

47 mm

LU Usable length

52 mm

Name Identifying order number

1032 17.501

NOF Flute count

NOS Step count

OAL Overall length

123 mm

PL Point length

1.9 mm

SDL Step diameter length

41 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

WN 33

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles

WT Weight of item

0.283 kg
