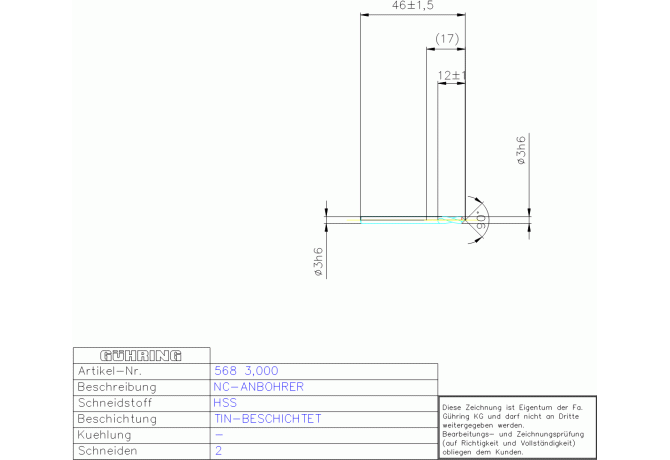

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 568 3.000

568 3.000

Артикул: 9005680030000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3 mm

DCONMSLD Shank diameter lower limit

-0.006 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00300105

FamilyProducts

HSS S-NC-ANBOHRER 3,000 WN 10RN ZYL90 GR

FHA Flute helix angle

19 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

26.5 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9005680030000

Interface codes

J6 / J61

ISO

ZYL01F3000$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

12 mm

LF Functional length

44.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 ISO

ZYL01F3000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

17 mm

LS Shank length

34 mm

LU Usable length

6 mm

Name Identifying order number

568 3.000

NOF Flute count

OAL Overall length

46 mm

PL Point length

1.5 mm

SIG Point angle 1st step

90 Degree

STDNO Standard

WN 10

Working process

BZB - Center-drilling

WT Weight of item

0.002 kg
