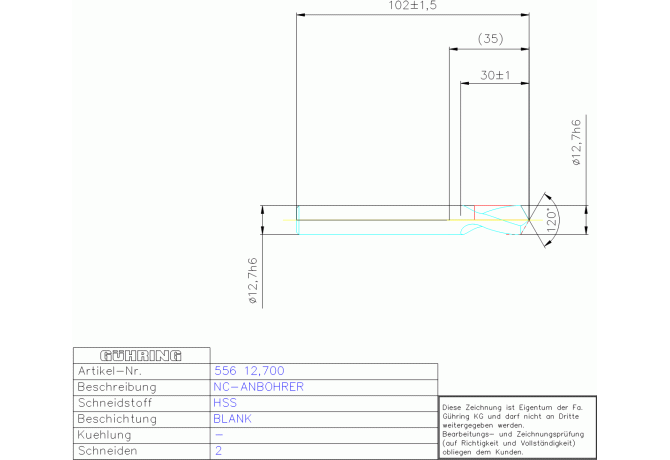

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 556 12.700

556 12.700

Артикул: 9005560127000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.7 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL05000125

FamilyProducts

HSS NC-ANBOHRER 12,700 WN 10RN ZYL120 GR

FHA Flute helix angle

22 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

100 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9005560127000

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

30 mm

LF Functional length

98.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000125

LPR Protruding length

35 mm

LS Shank length

72 mm

LU Usable length

24 mm

Name Identifying order number

556 12.700

NOF Flute count

OAL Overall length

102 mm

PL Point length

3.7 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

WN 10

Working process

BZB - Center-drilling

WT Weight of item

0.09 kg
