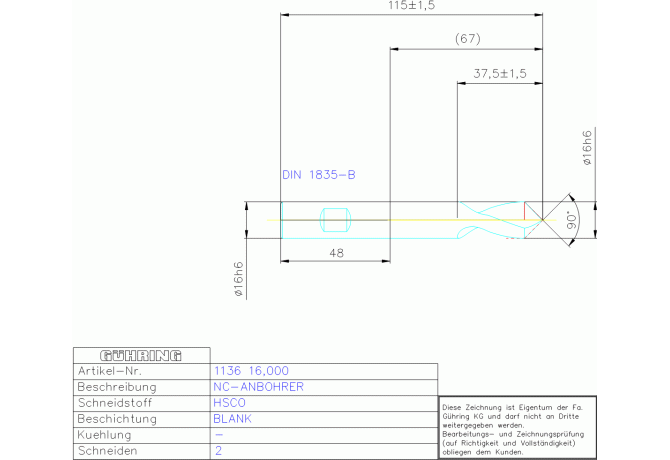

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 1136 16.000

1136 16.000

Артикул: 9011360160000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

16 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01601005

FamilyProducts

HSCO NC-ANBOHRER 90° ZYL WN RN

FHA Flute helix angle

23 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

118 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9011360160000

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

37.5 mm

LF Functional length

83 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR Protruding length

67 mm

LS Shank length

48 mm

LU Usable length

30 mm

Name Identifying order number

1136 16.000

NOF Flute count

OAL Overall length

115 mm

PL Point length

8 mm

SIG Point angle 1st step

90 Degree

STDNO Standard

WN 10

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.162 kg
