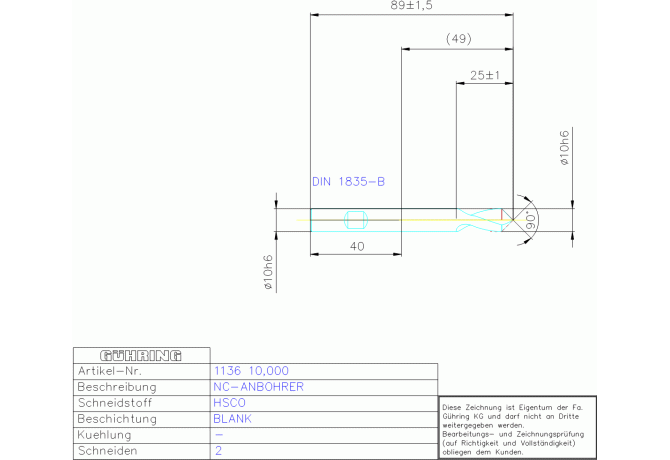

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 1136 10.000

1136 10.000

Артикул: 9011360100000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01001005

FamilyProducts

HSCO NC-ANBOHRER 90° ZYL WN RN

FHA Flute helix angle

22 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9011360100000

Interface codes

J6 / J61

ISO

ZYL10G1000h$06

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

25 mm

LF Functional length

64 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001005

LPR Protruding length

49 mm

LS Shank length

40 mm

LU Usable length

20 mm

Name Identifying order number

1136 10.000

NOF Flute count

OAL Overall length

89 mm

PL Point length

5 mm

SIG Point angle 1st step

90 Degree

STDNO Standard

WN 10

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.005 kg
