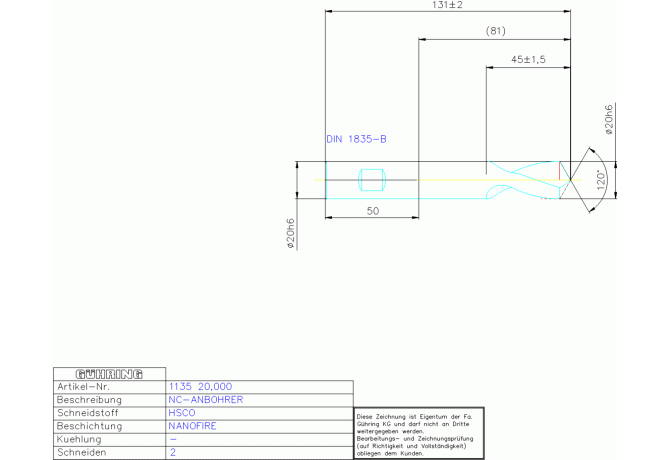

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 1135 20.000

1135 20.000

Артикул: 9011350200000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

NANOFIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

20 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02001005

FamilyProducts

HSCO FIRE NC-ANBOHRER 120° ZYL WN RN

FHA Flute helix angle

23 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

150 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9011350200000

Interface codes

J6 / J61

ISO

ZYL10G2000h$06

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

45 mm

LF Functional length

100.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

81 mm

LS Shank length

50 mm

LU Usable length

36 mm

Name Identifying order number

1135 20.000

NOF Flute count

OAL Overall length

131 mm

PL Point length

5.8 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

WN 10

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.288 kg
