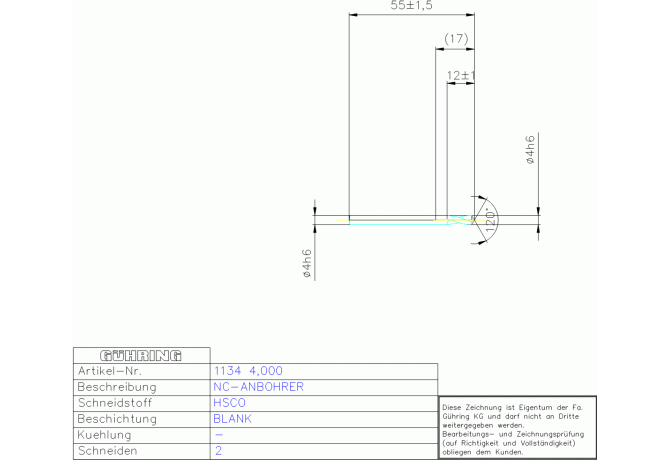

Главная Каталог продукции Toolunited 12 302-06 - Spot drill 1134 4.000

1134 4.000

Артикул: 9011340040000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00400105

FamilyProducts

HSCO NC-ANBOHRER 120° ZYL WN RN

FHA Flute helix angle

19 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

35.5 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9011340040000

Interface codes

J6 / J61

ISO

ZYL01F4000$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

12 mm

LF Functional length

53.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 ISO

ZYL01F4000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

17 mm

LS Shank length

43 mm

LU Usable length

3 mm

Name Identifying order number

1134 4.000

NOF Flute count

OAL Overall length

55 mm

PL Point length

1.2 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

WN 10

Working process

BZB - Center-drilling

WT Weight of item

0.006 kg
