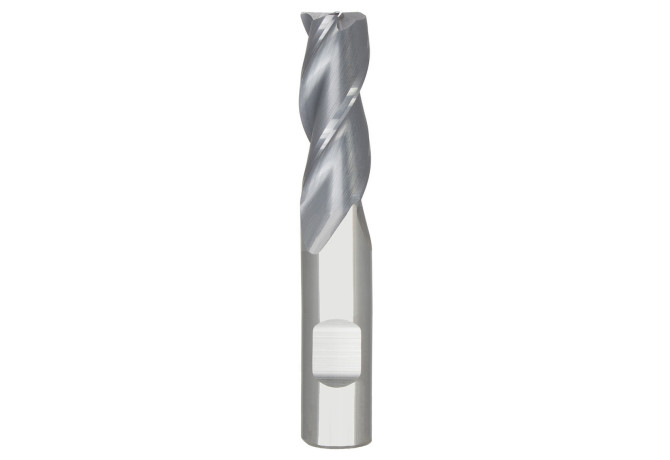

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill S335.188D2R010.0Z3 ALTIN

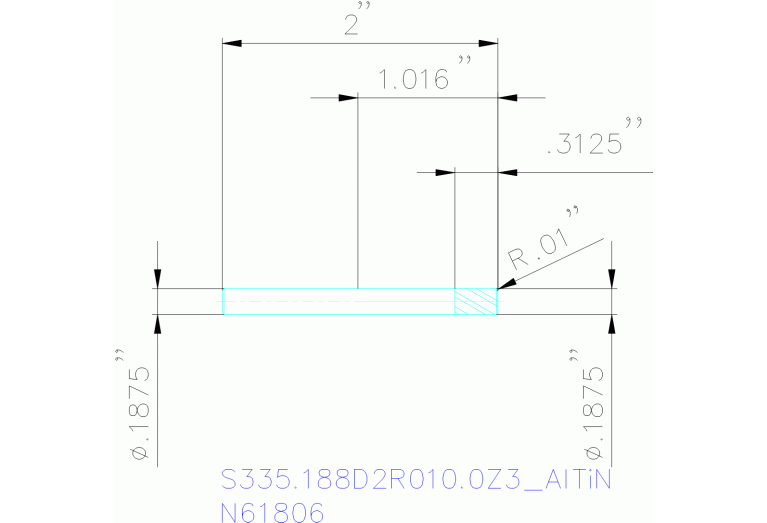

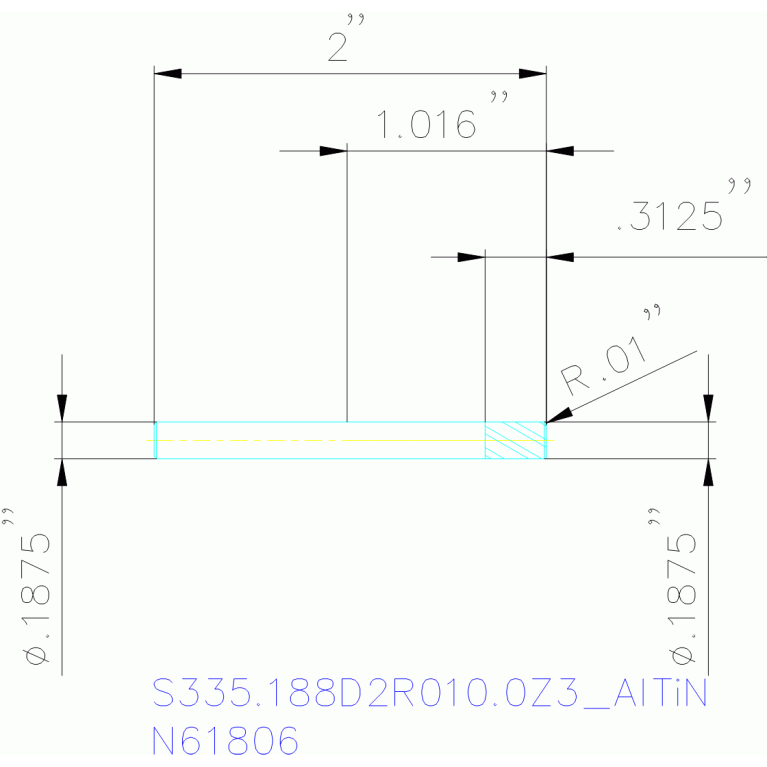

S335.188D2R010.0Z3 ALTIN

S335.188D2R010.0Z3 ALTIN S335.188D2R010.0Z3 ALTIN S335.188D2R010.0Z3 ALTIN S335.188D2R010.0Z3 ALTIN

S335.188D2R010.0Z3 ALTIN

Seco
Артикул: 17003404
В наличии
В корзину
Описание
Характеристики

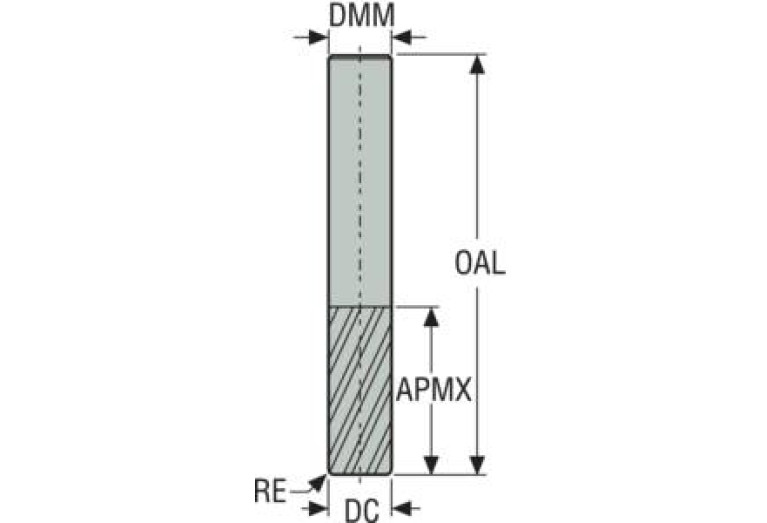

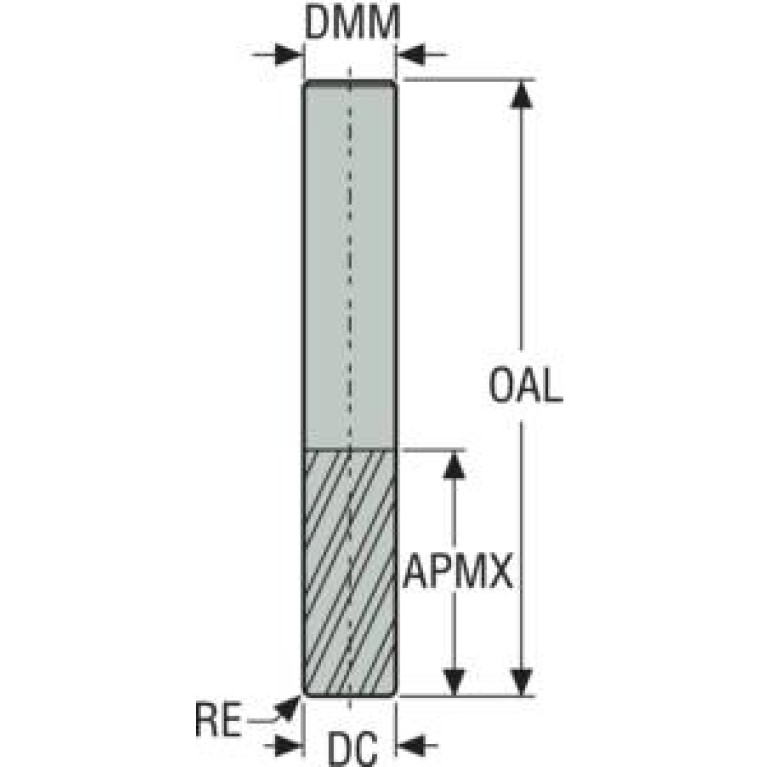

APMX Depth of cut maximum
7.938 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlTiN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
4.762 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01870125
F71 Number of corner designs
1
FamilyProducts
S335.188D2R010.0Z3 ALTIN
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
35 Degree
GAMP Rake angle axial
10 Degree
GRDMFG Grade manufacturers designation
ALTIN
HAND Cutting direction
R - Right
ID Technical product number
17003404
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0187
LOC-03 DCONMS Diameter
4.762 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01870125
LS Shank length
28 mm
Name Identifying order number
S335.188D2R010.0Z3 ALTIN
NameAnsi Identifying order number inch alternative
S335-0.188-D2-R010.0-Z3
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
2 Degree
Working process
No working processes available
WT Weight of item
0.009 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
