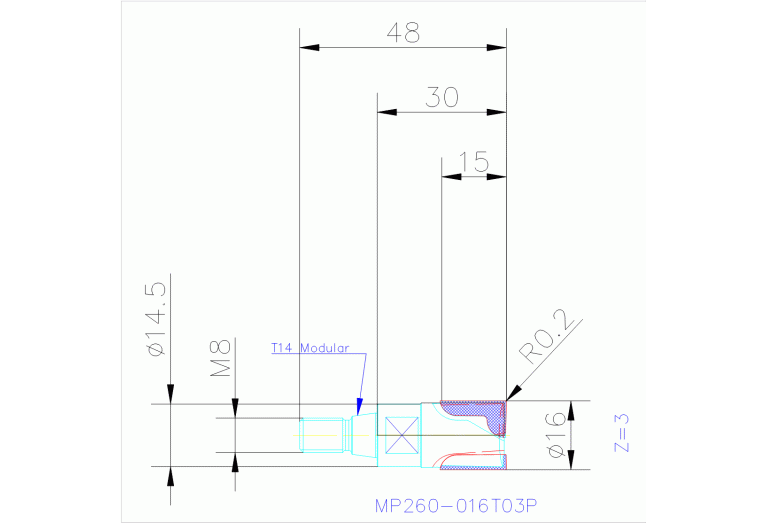

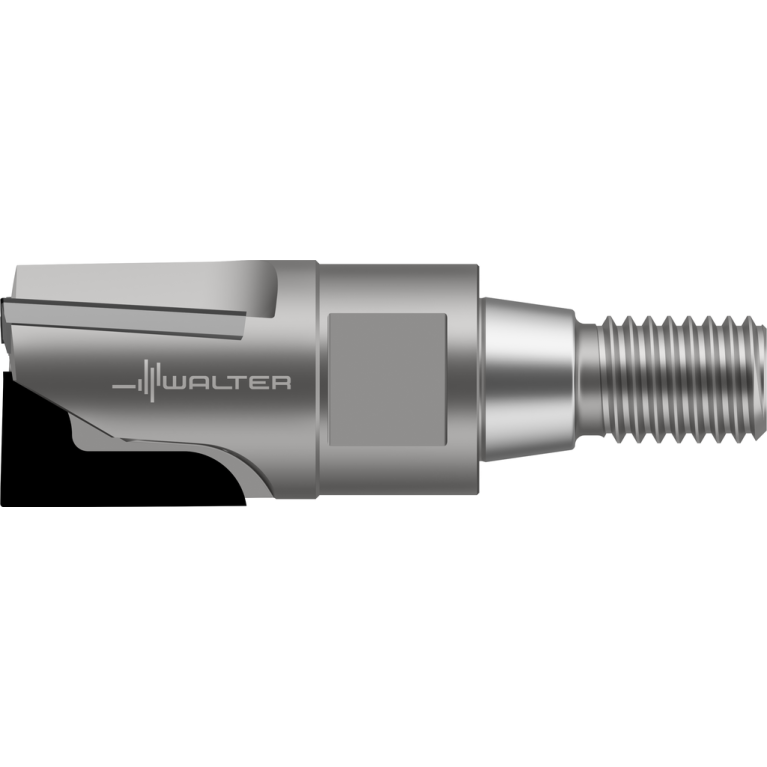

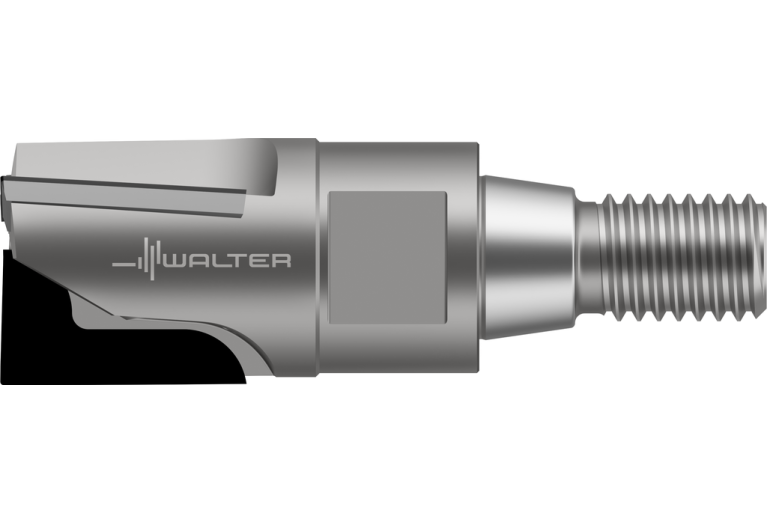

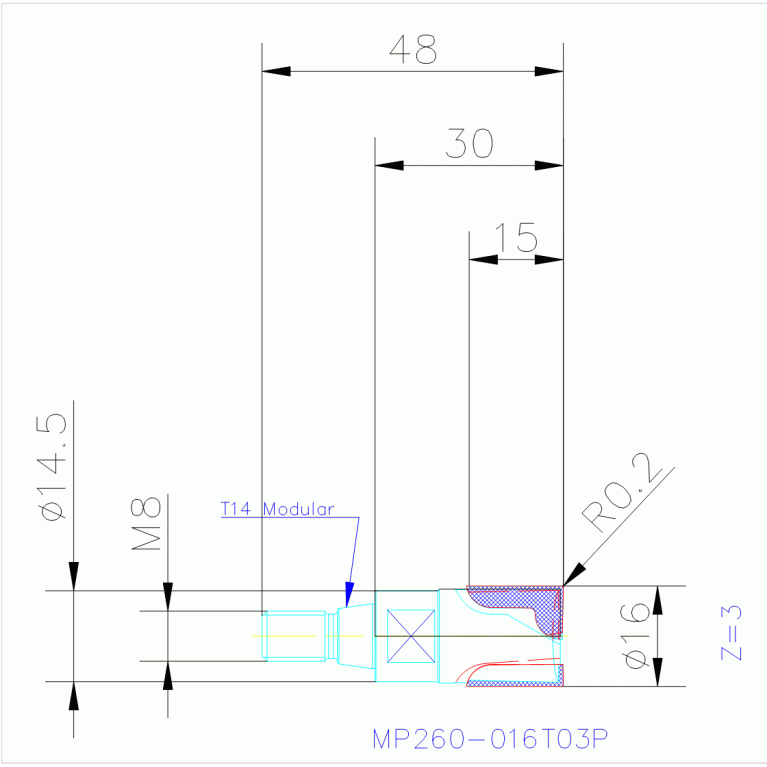

MP260-016T03P WDN20

Артикул: 7939013

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15 mm

BMC Body material code

S - Solid steel

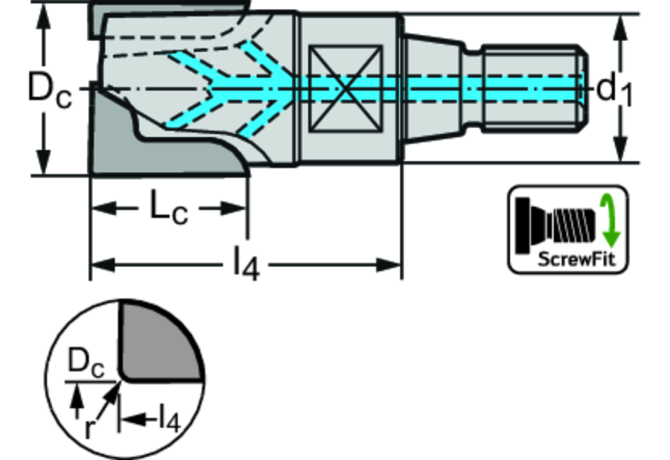

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

PKD

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW01400195

DN Neck diameter

14.5 mm

F71 Number of corner designs

FamilyProducts

PCD routing cutter MP260

FHA Flute helix angle

4 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

WDN20

HAND Cutting direction

R - Right

ID Technical product number

7939013

Interface codes

J6 / J61

ISO

SAW01C0140$$$$

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

30 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0140

LOC-03 DCONMS Diameter

14.5 mm

LOC-03 ISO

SAW01C0140$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW01400195

LPR Protruding length

30 mm

Materials

N,O

Name Identifying order number

MP260-016T03P WDN20

OAL Overall length

48 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

89 Degree

RPMX Rotational speed maximum

70000 1/min

Working process

BVB - Drilling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.034 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
