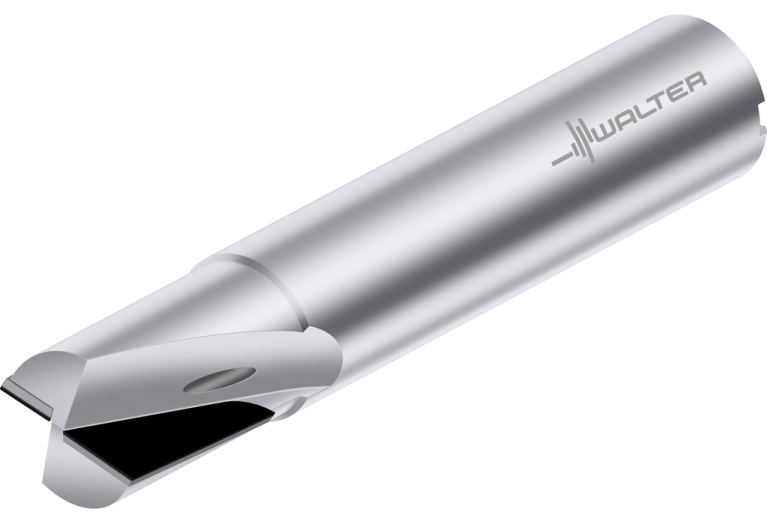

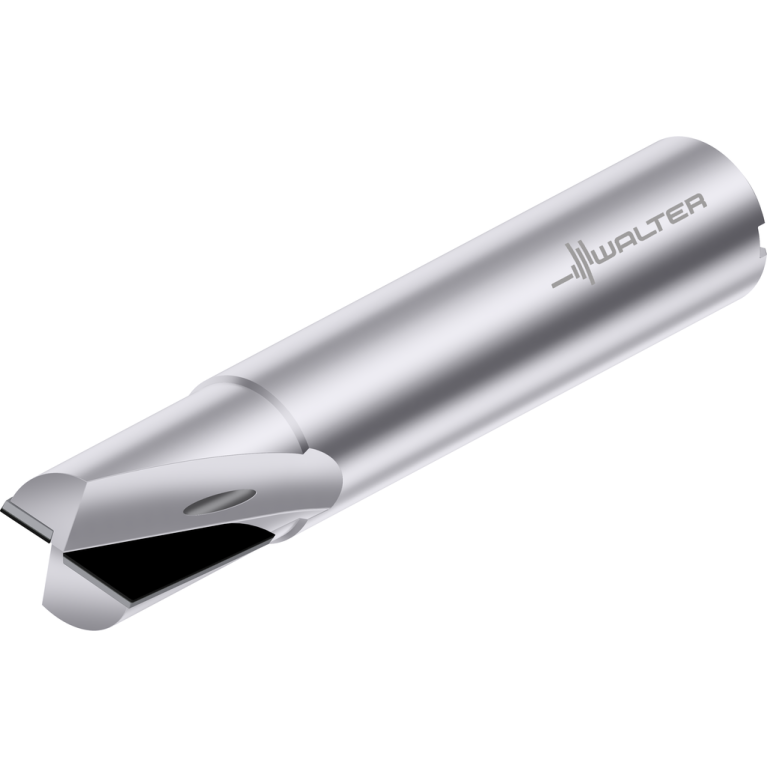

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill MP260-012A02P WDN20

MP260-012A02P WDN20

Артикул: 7939008

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

PKD

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

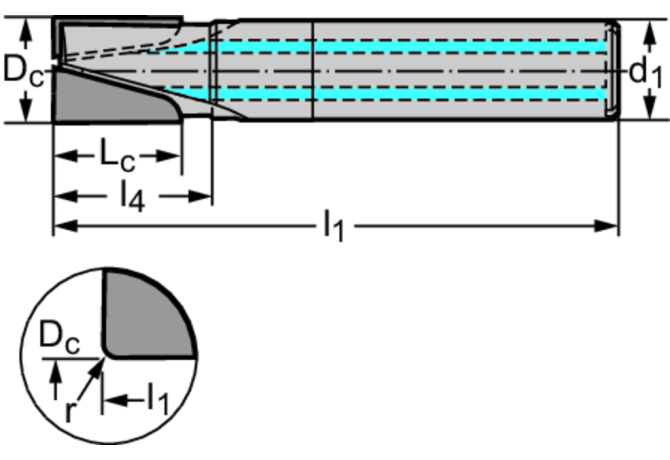

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01200115

DN Neck diameter

11.2 mm

F71 Number of corner designs

FamilyProducts

PCD routing cutter MP260

FHA Flute helix angle

3 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

3 Degree

GRDMFG Grade manufacturers designation

WDN20

HAND Cutting direction

R - Right

ID Technical product number

7939008

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

303-02 - Centre cutting end mill

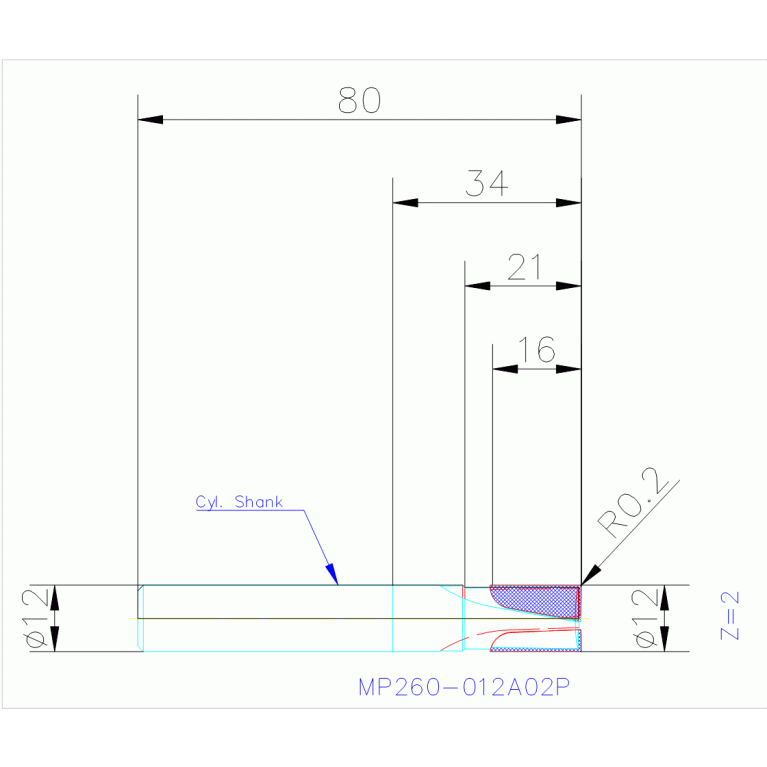

LF Functional length

80 mm

LN Neck length

20.307 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

34 mm

LS Shank length

45 mm

Materials

N,O

Name Identifying order number

MP260-012A02P WDN20

OAL Overall length

80 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

89 Degree

RPMX Rotational speed maximum

92000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN6535

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.107 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
