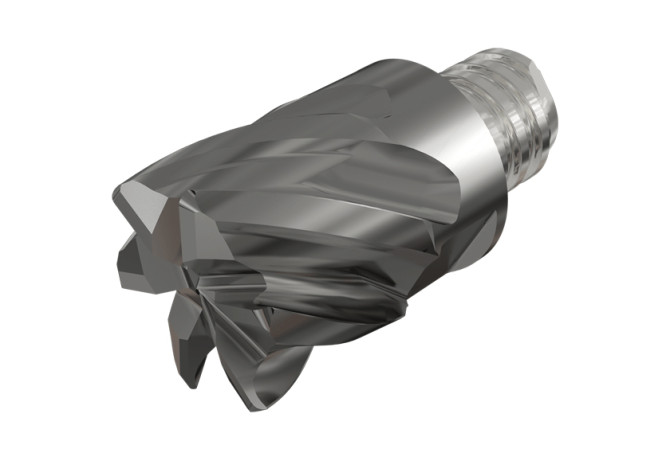

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill MM ECK320H38R5-5T21 IC908

MM ECK320H38R5-5T21 IC908

Артикул: 3346354

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI00000185

F71 Number of corner designs

FamilyProducts

5,6 Flute Solid Carbide Heads with 35°/38° Helix Featuring Different Corner Radii For Machining Titanium Alloys

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

3346354

Interface codes

J6 / J61

ISO

SAI01C0000$$$$

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0000

LOC-03 ISO

SAI01C0000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00000185

Name Identifying order number

MM ECK320H38R5-5T21 IC908

RE Corner radius

5 mm

RMPX Ramping angle maximum

1 Degree

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
