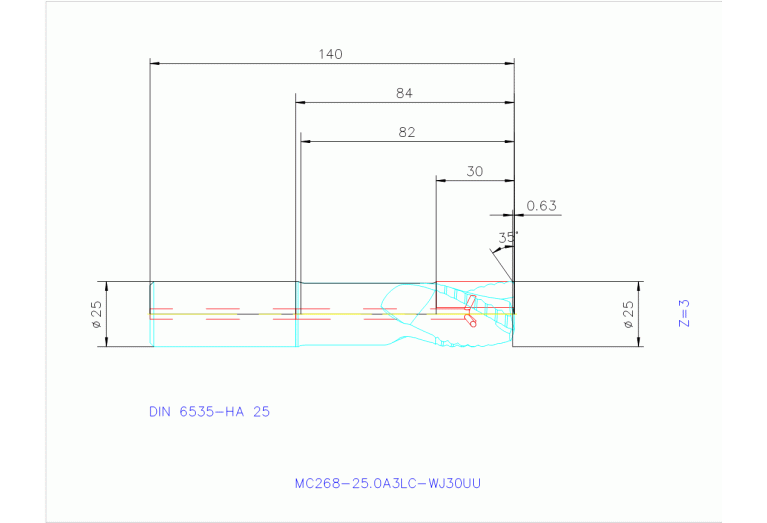

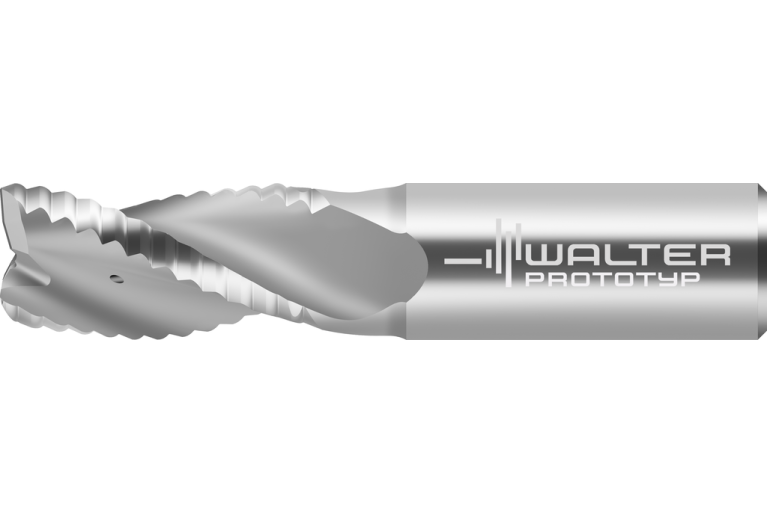

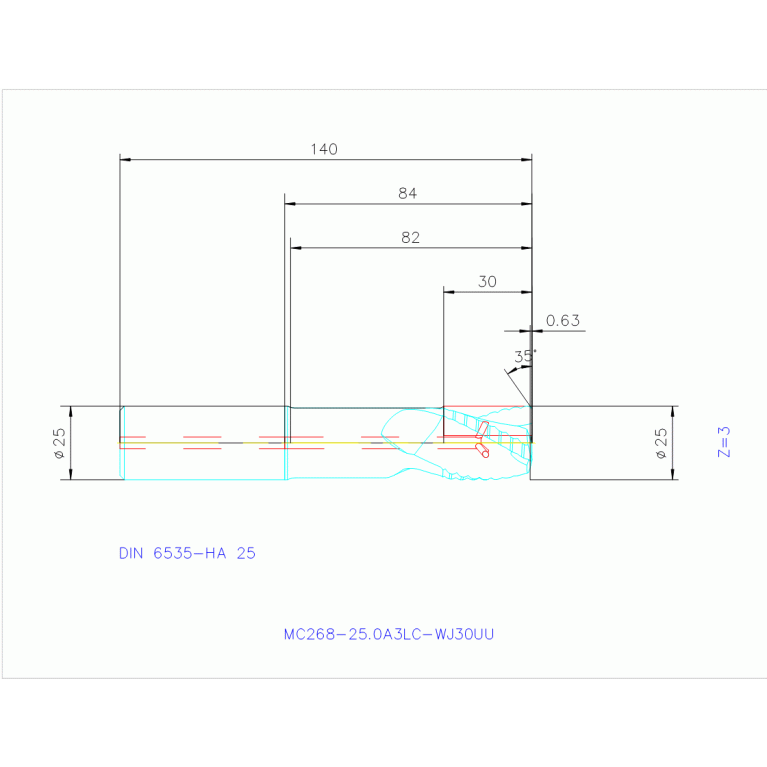

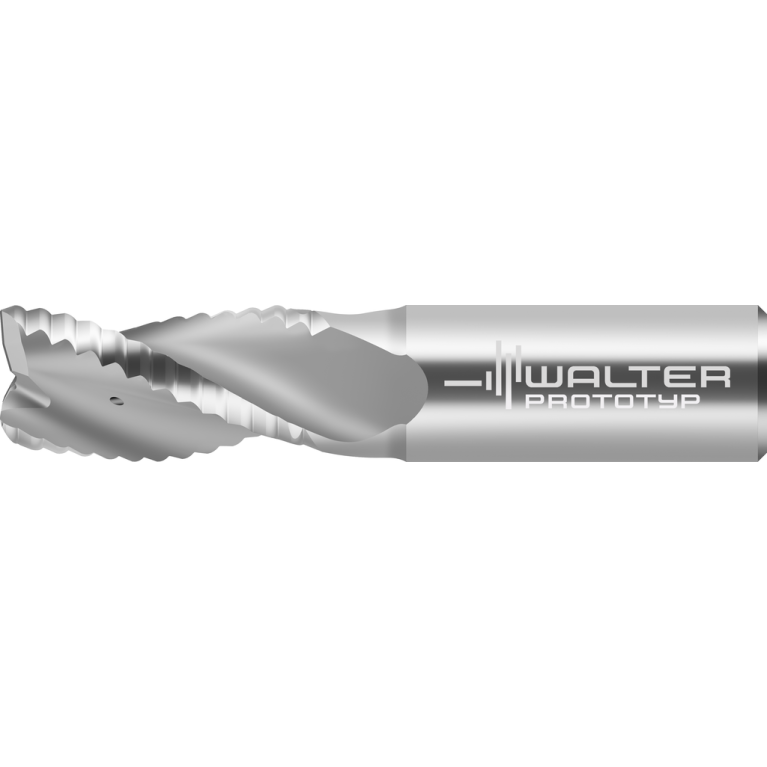

MC268-25.0A3LC-WJ30UU

MC268-25.0A3LC-WJ30UU MC268-25.0A3LC-WJ30UU MC268-25.0A3LC-WJ30UU MC268-25.0A3LC-WJ30UU

MC268-25.0A3LC-WJ30UU

Walter
Артикул: 8200411
В наличии
В корзину
Описание
Характеристики

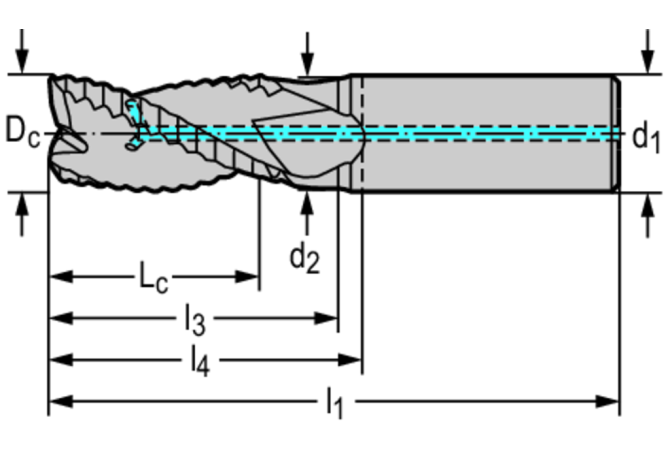

APMX Depth of cut maximum
30 mm
BMC Body material code
H - Solid carbide
CHW Corner chamfer width
0.9 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
unbeschichtet
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02500115
DN Neck diameter
23.75 mm
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder/slot mills MC268
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
7 Degree
GRDMFG Grade manufacturers designation
WJ30UU
HAND Cutting direction
R - Right
ID Technical product number
8200411
Interface codes
J6 / J61
ISO
ZYL01G2500h$06
ISYC Subclass
303-02 - Centre cutting end mill
KCH Corner chamfer angle
55 Degree
LF Functional length
140 mm
LN Neck length
80.917 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
84 mm
LS Shank length
56 mm
Materials
N
Name Identifying order number
MC268-25.0A3LC-WJ30UU
OAL Overall length
140 mm
RMPX Ramping angle maximum
20 Degree
RPMX Rotational speed maximum
75671 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
P-NORM L
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.815 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
