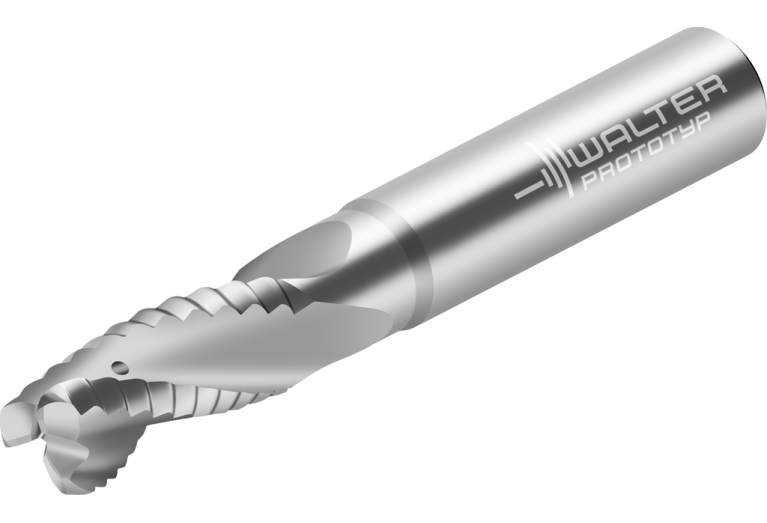

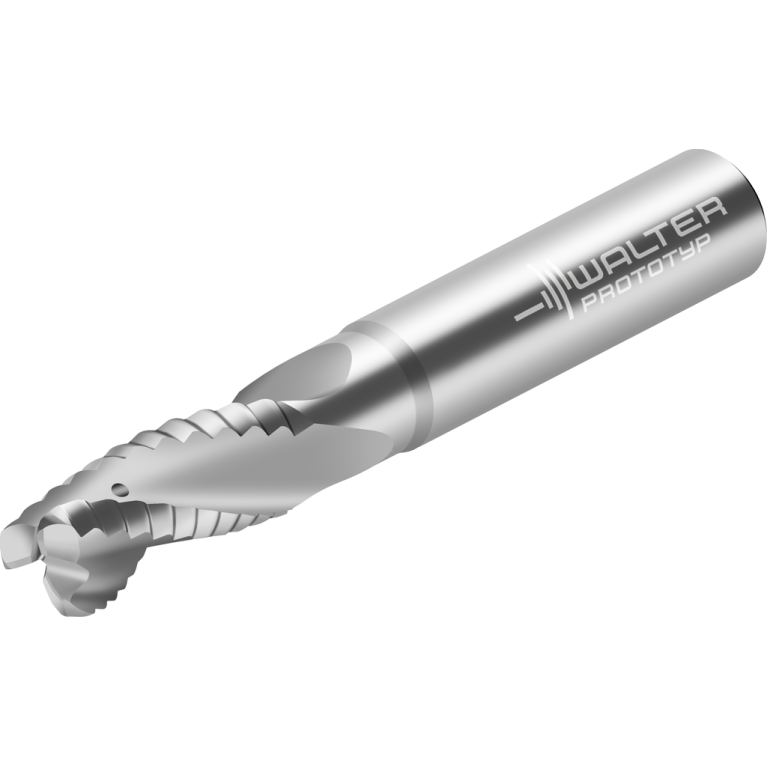

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill MC268-20.0A3B400C-WJ30UU

MC268-20.0A3B400C-WJ30UU

Артикул: 8200399

В наличии

В корзину

Описание

Характеристики

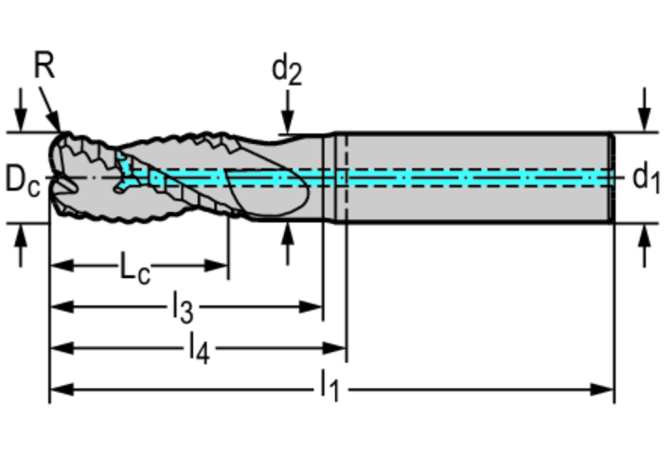

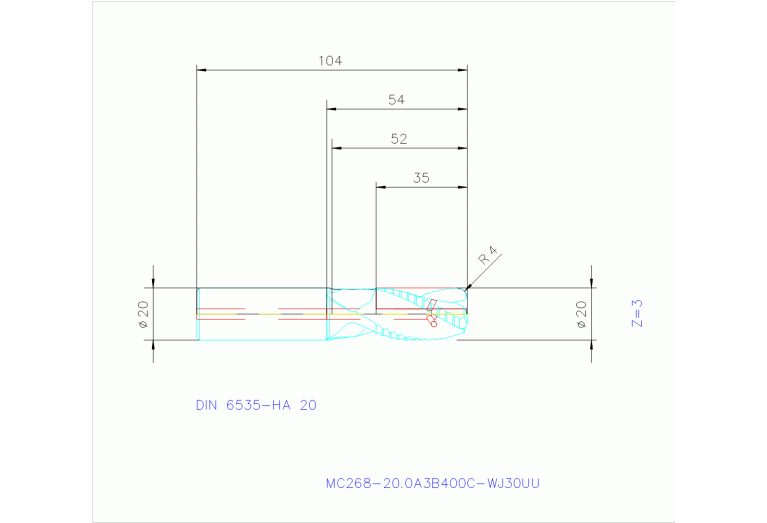

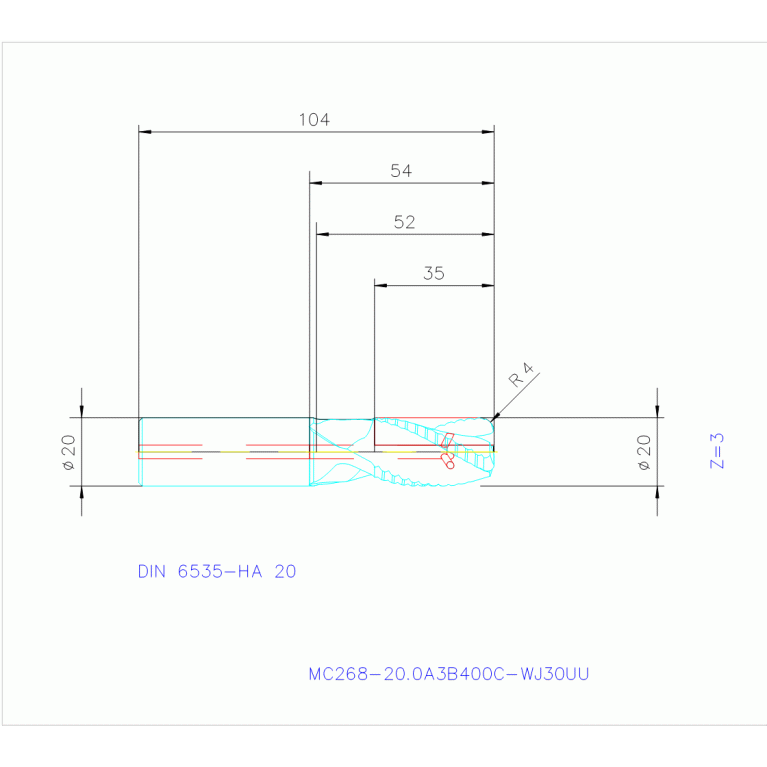

APMX Depth of cut maximum

35 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

unbeschichtet

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02000115

DN Neck diameter

19 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills MC268

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10 Degree

GAMP Rake angle axial

7 Degree

GRDMFG Grade manufacturers designation

WJ30UU

HAND Cutting direction

R - Right

ID Technical product number

8200399

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

104 mm

LN Neck length

51.134 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

LPR Protruding length

54 mm

LS Shank length

50 mm

Materials

Name Identifying order number

MC268-20.0A3B400C-WJ30UU

OAL Overall length

104 mm

RE Corner radius

4 mm

RMPX Ramping angle maximum

10 Degree

RPMX Rotational speed maximum

148869 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 6527 L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.359 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
