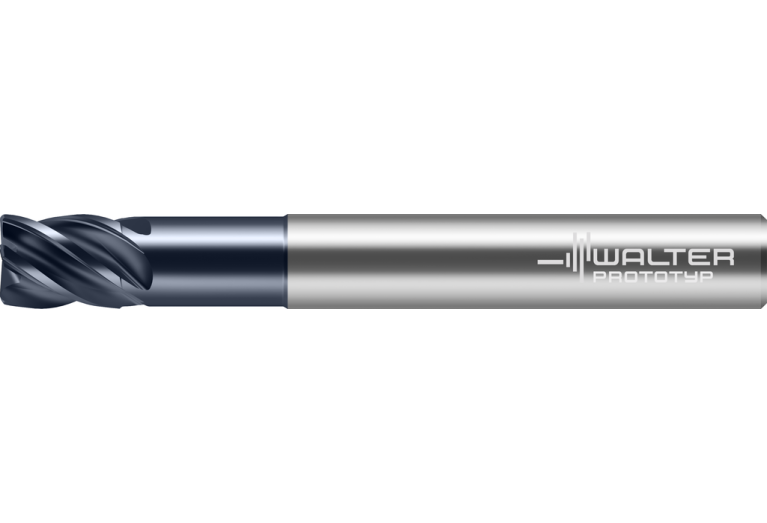

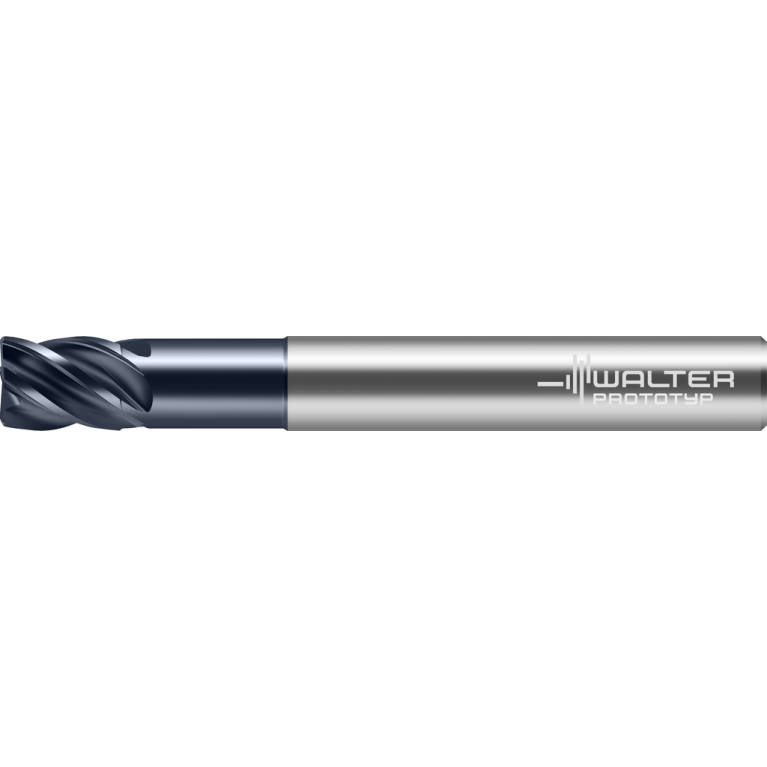

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill MA377.9.53A5D076J-WJ30EN

MA377.9.53A5D076J-WJ30EN

Артикул: 8417856

В наличии

В корзину

Описание

Характеристики

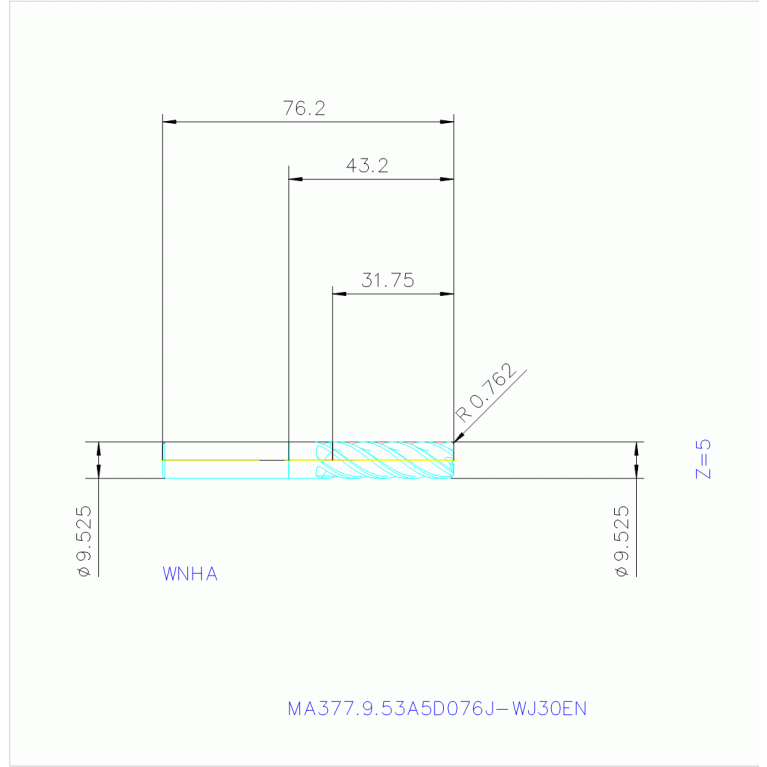

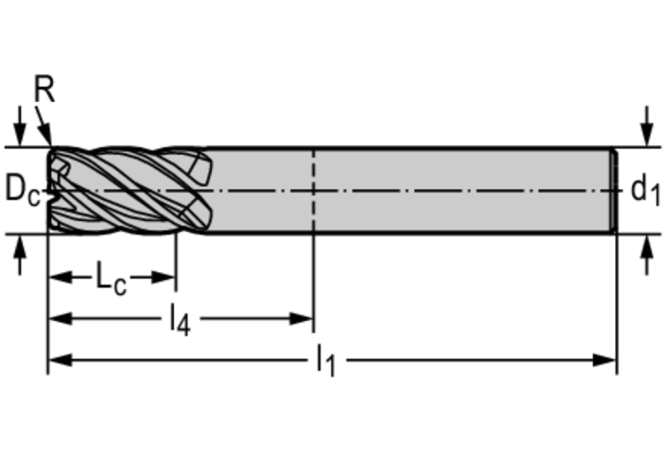

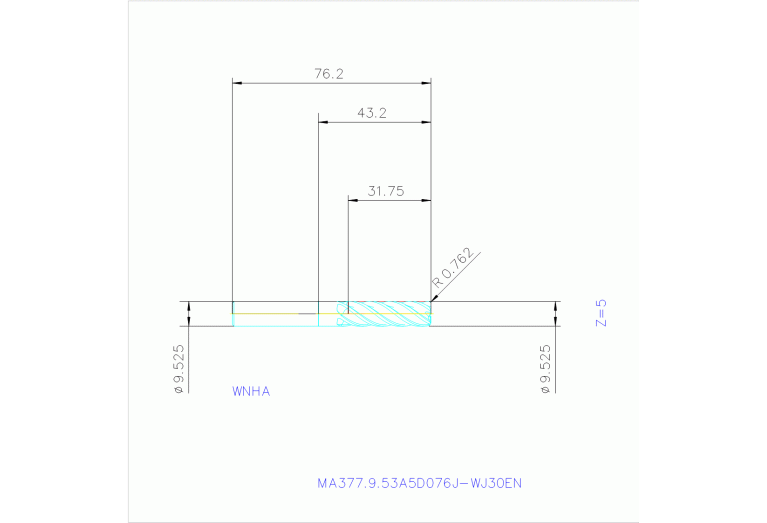

APMX Depth of cut maximum

31.75 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

nACRo

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

9.525 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03750125

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills MA377

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

8.5 Degree

GAMP Rake angle axial

3 Degree

GRDMFG Grade manufacturers designation

WJ30EN

HAND Cutting direction

R - Right

ID Technical product number

8417856

Interface codes

J6 / J61

ISO

ZYL01R3750h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

76.2 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

0375

LOC-03 DCONMS Diameter

9.525 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01R3750h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03750125

LPR Protruding length

43.2 mm

LS Shank length

33 mm

Materials

P,M,S

Name Identifying order number

MA377.9.53A5D076J-WJ30EN

OAL Overall length

76.2 mm

RE Corner radius

0.762 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDNO Standard

P-NORM D

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.074 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
