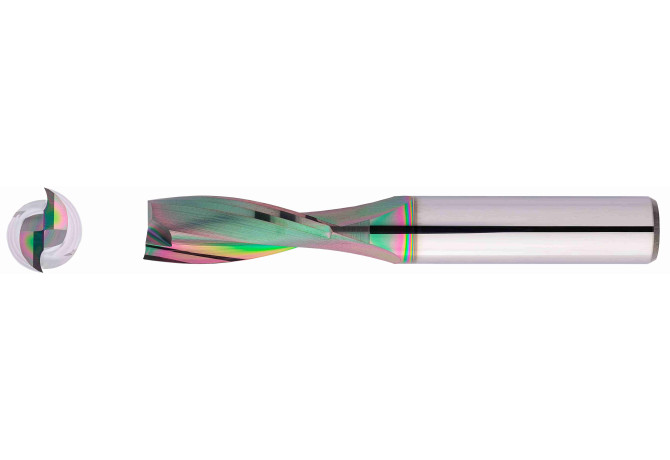

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill EXN1-M01-0013-2

EXN1-M01-0013-2

Артикул: EXN1-M01-0013-2

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlphaSlide Rainbow

COMPC Company code

HUV - Hofmann & Vratny

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/1/2023

DIN

ZYL00300105

DN Neck diameter

1.85 mm

E71 Transition angle 1

20 Degree

F71 Number of corner designs

FamilyProducts

EXN1 Performmaker Z2-3 ASR

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LN Neck length

11 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

Materials

Name Identifying order number

EXN1-M01-0013-2

OAL Overall length

50 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.004 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
