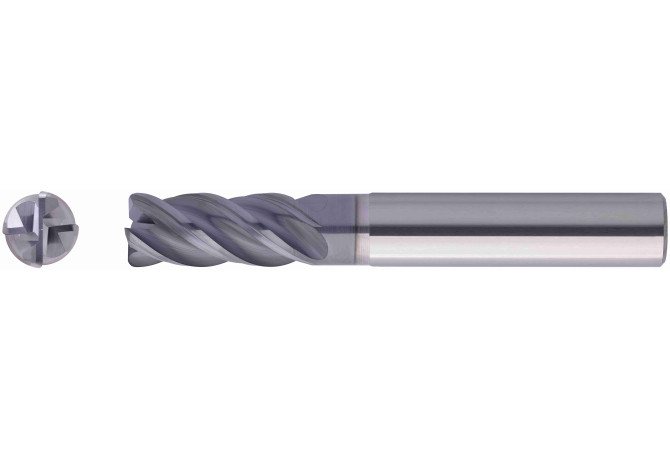

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill BCU1-M06-0123-16/1

BCU1-M06-0123-16/1

Артикул: BCU1-M06-0123-16/1

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

BetaUni Iron

COMPC Company code

HUV - Hofmann & Vratny

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2023

DIN

ZYL01600105

DN Neck diameter

15.5 mm

E71 Transition angle 1

20 Degree

F71 Number of corner designs

FamilyProducts

BCU1 Formmaker Z4 2xD BUI

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LN Neck length

44 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

Materials

P,M,K,N,S

Name Identifying order number

BCU1-M06-0123-16/1

OAL Overall length

92 mm

RE Corner radius

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.231 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
