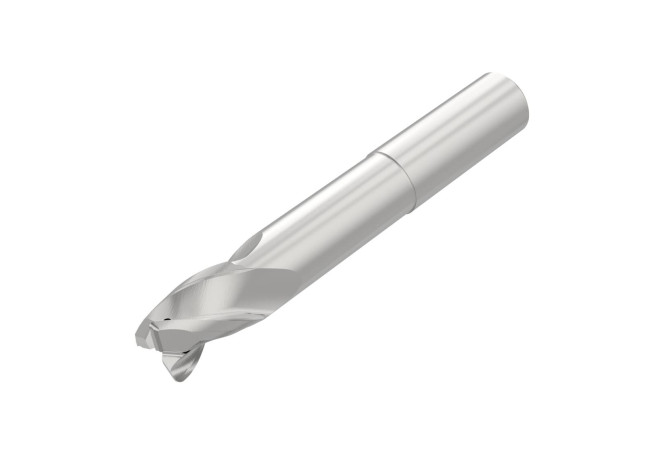

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill AN335R.750E4R120.0Z3A

AN335R.750E4R120.0Z3A

AN335R.750E4R120.0Z3A AN335R.750E4R120.0Z3A AN335R.750E4R120.0Z3A AN335R.750E4R120.0Z3A

AN335R.750E4R120.0Z3A

Seco
Артикул: 03302660
В наличии
В корзину
Описание
Характеристики

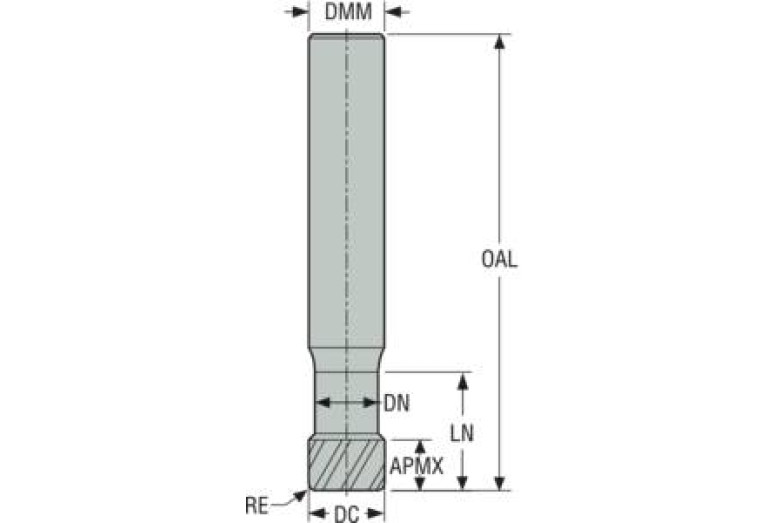

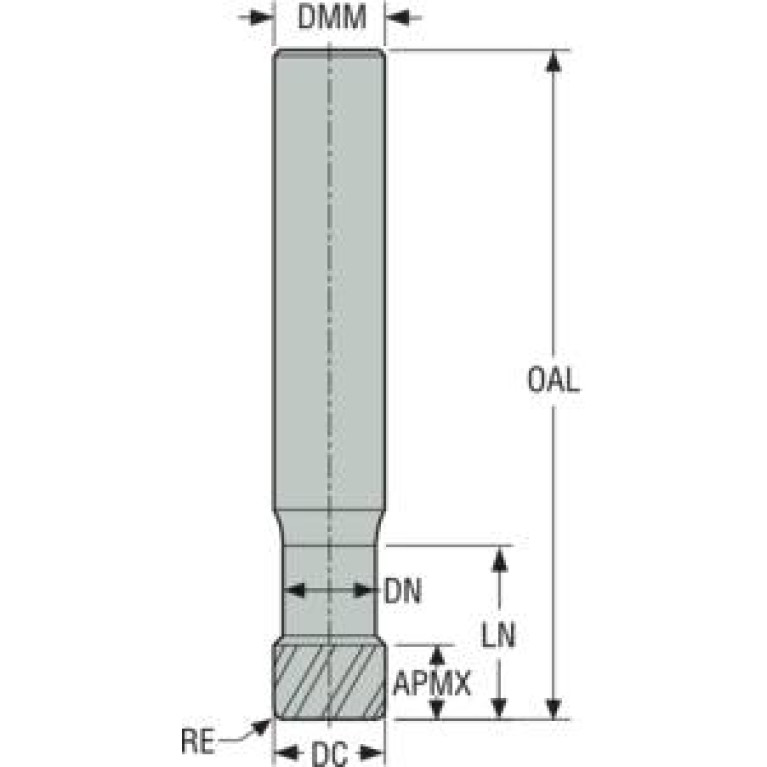

APMX Depth of cut maximum
25.4 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL07500135
DN Neck diameter
18.288 mm
F71 Number of corner designs
1
FamilyProducts
AN335R.750E4R120.0Z3A
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
15 Degree
HAND Cutting direction
R - Right
ID Technical product number
03302660
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LN Neck length
79.375 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07500135
LS Shank length
45 mm
Name Identifying order number
AN335R.750E4R120.0Z3A
NameAnsi Identifying order number inch alternative
AN335R-0.750-E4-R120.0-Z3

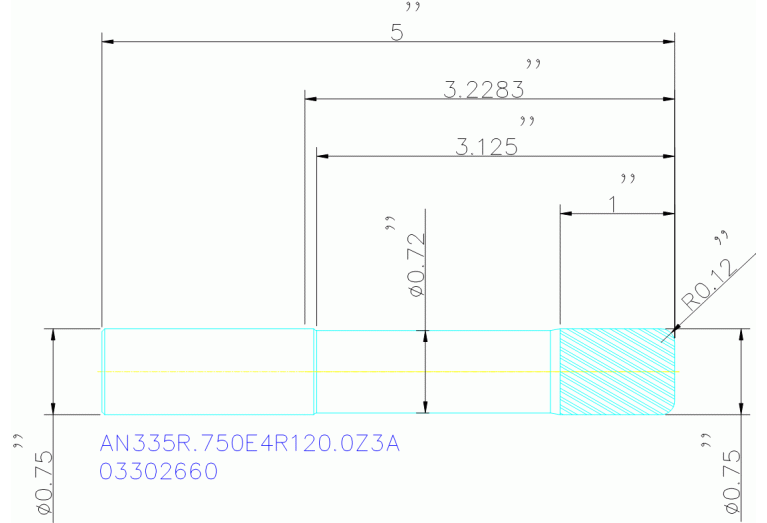

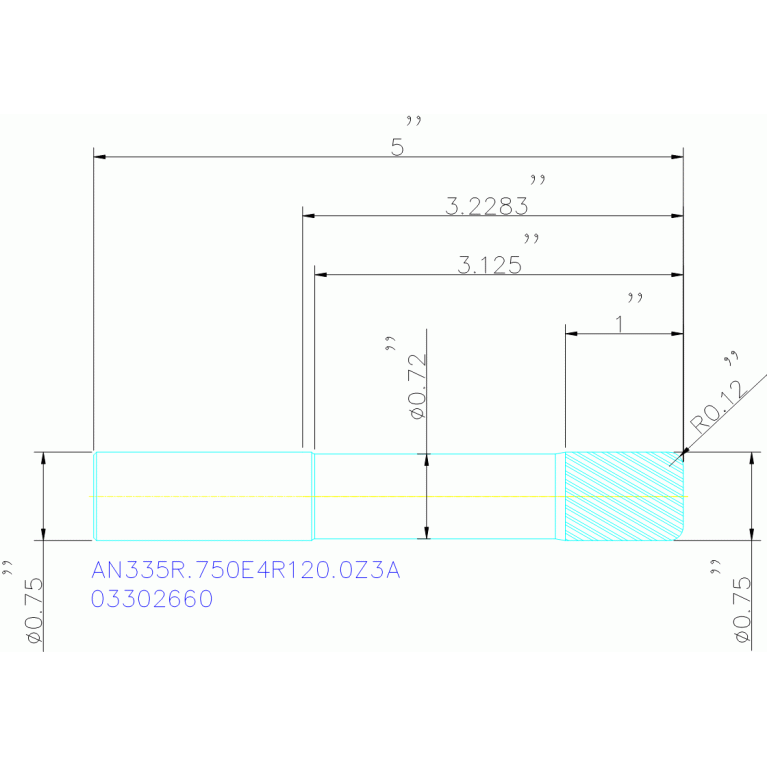

OAL Overall length
127 mm
RMPX Ramping angle maximum
10 Degree
Working process
No working processes available
WT Weight of item
0.522 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
