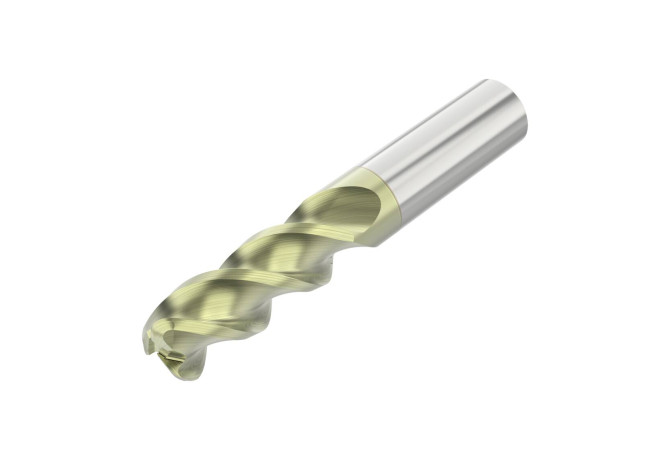

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill A345R1.000D3R125.0Z3 ANF

A345R1.000D3R125.0Z3 ANF

A345R1.000D3R125.0Z3 ANF A345R1.000D3R125.0Z3 ANF A345R1.000D3R125.0Z3 ANF

A345R1.000D3R125.0Z3 ANF

Seco
Артикул: 10023108
В наличии
В корзину
Описание
Характеристики

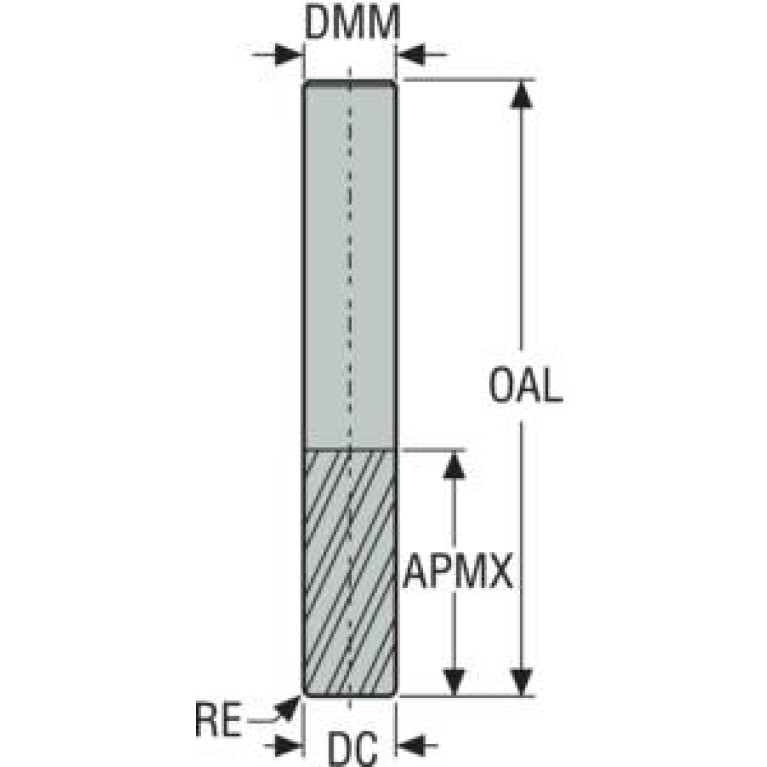

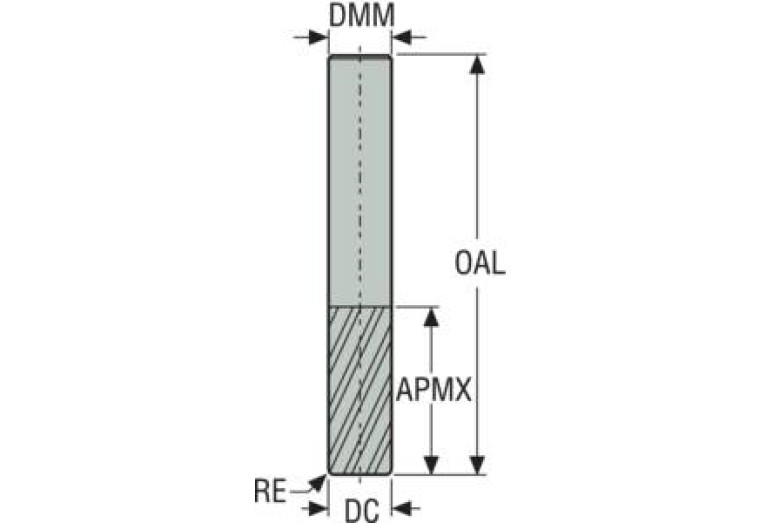

APMX Depth of cut maximum
66.675 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ANF
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
25.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10000125
F71 Number of corner designs
1
FamilyProducts
A345R1.000D3R125.0Z3 ANF
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
20 Degree
GRDMFG Grade manufacturers designation
ANF
HAND Cutting direction
R - Right
ID Technical product number
10023108
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10000125
LS Shank length
57.937 mm
Name Identifying order number
A345R1.000D3R125.0Z3 ANF
NameAnsi Identifying order number inch alternative
A345R-1.000-D3-R125.0-Z3
OAL Overall length
152.4 mm
RMPX Ramping angle maximum
5 Degree
Working process
No working processes available
WT Weight of item
0.851 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
