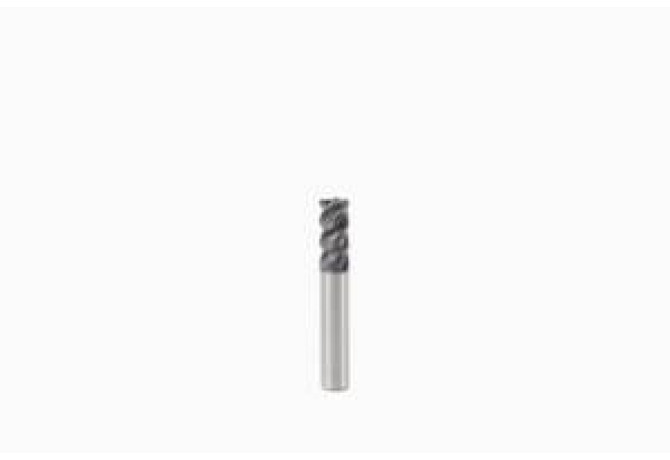

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 760250R050Z4A-MEGA-64

760250R050Z4A-MEGA-64

760250R050Z4A-MEGA-64 760250R050Z4A-MEGA-64 760250R050Z4A-MEGA-64 760250R050Z4A-MEGA-64

760250R050Z4A-MEGA-64

Seco
Артикул: 02734057
В наличии
В корзину
Описание
Характеристики

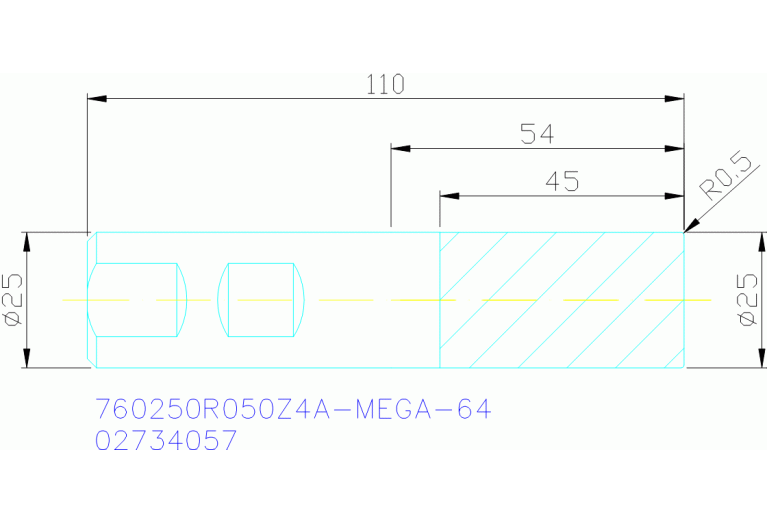

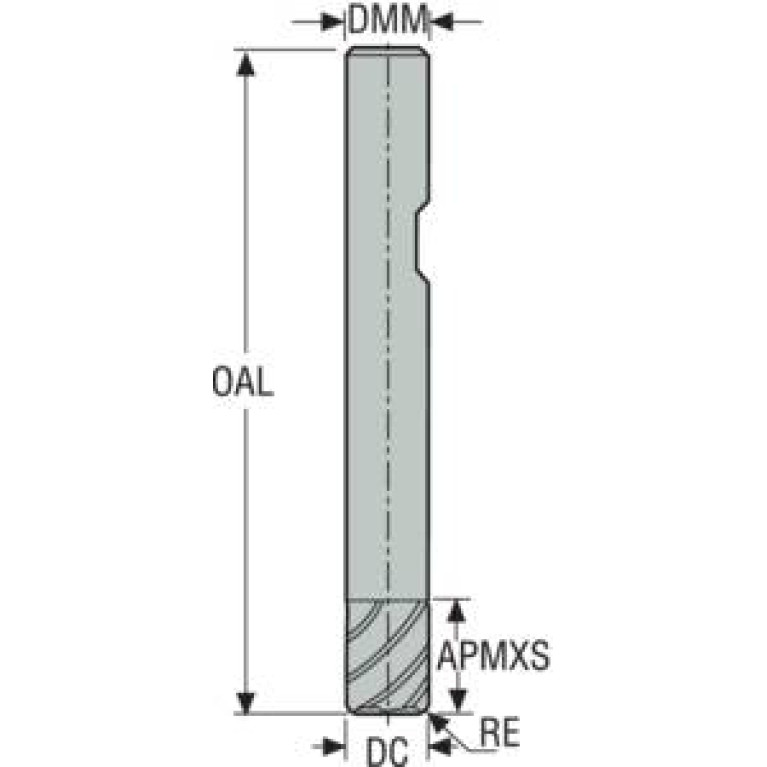

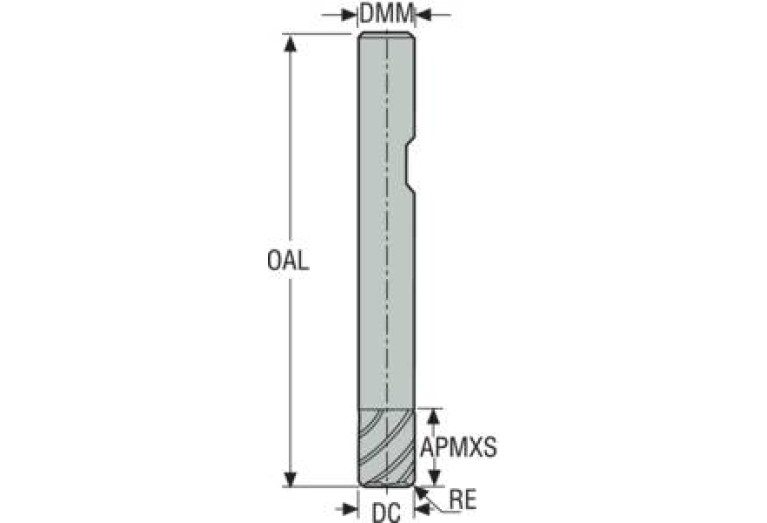

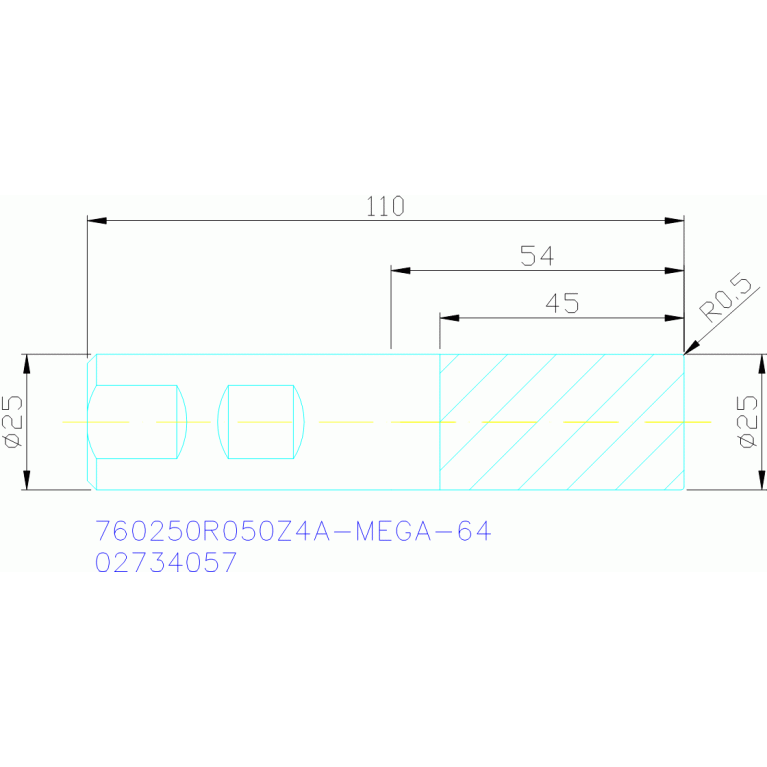

APMX Depth of cut maximum
45 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL02501015
F71 Number of corner designs
1
FamilyProducts
760250R050Z4A-MEGA-64
FHA Flute helix angle
48 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
48 Degree
GAMP Rake angle axial
11 Degree
HAND Cutting direction
R - Right
ID Technical product number
02734057
Interface codes
J6 / J61
ISO
ZYL10G2500h$05
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL10G2500h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LS Shank length
56 mm
Name Identifying order number
760250R050Z4A-MEGA-64
OAL Overall length
110 mm
RE Corner radius
0.5 mm
Working process
No working processes available
WT Weight of item
0.695 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
