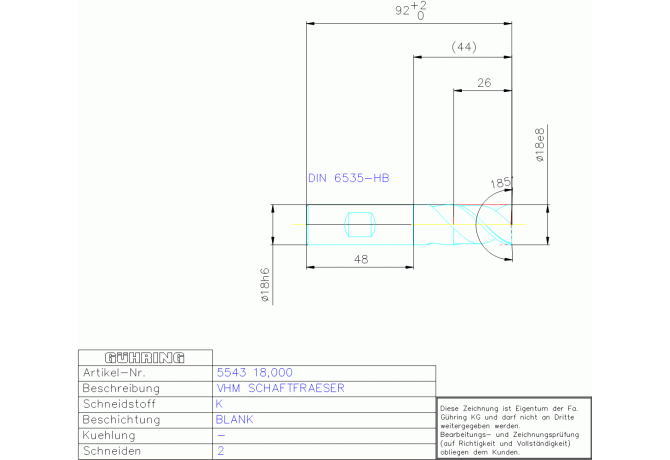

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 5543 18.000

5543 18.000

Артикул: 9055430180000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

18 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01801005

F71 Number of corner designs

FamilyProducts

VHM SL-SCHAFTFRA,2 SCHN. DIN 6527L R

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

56 mm

GAMF Rake angle radial

45 Degree

GAMP Rake angle axial

25 Degree

GRD2ND Standard designation of the grade 2nd application

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9055430180000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

68 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01801005

LPR Protruding length

44 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

5543 18.000

OAL Overall length

92 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN 6527L

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting

WT Weight of item

0.307 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
