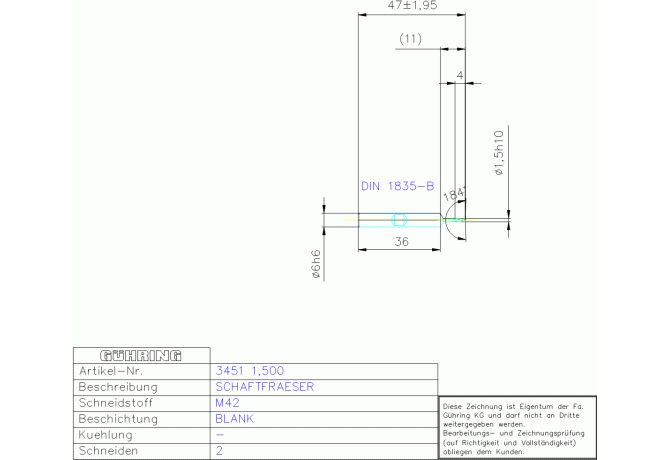

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 3451 1.500

3451 1.500

Артикул: 9034510015000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1.5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00601005

F71 Number of corner designs

FamilyProducts

M42 ZL-FRA-BN 2S DIN 327-B RN 30°

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

8 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9034510015000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

29 mm

LN Neck length

7.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

11 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3451 1.500

OAL Overall length

47 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN327

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting

WT Weight of item

0.008 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
